Static Triaxial Cells

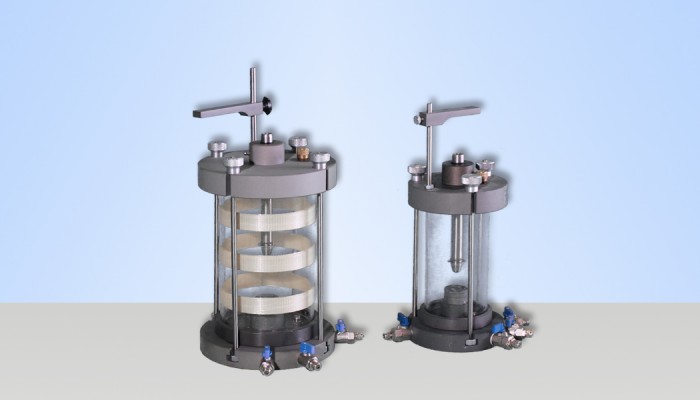

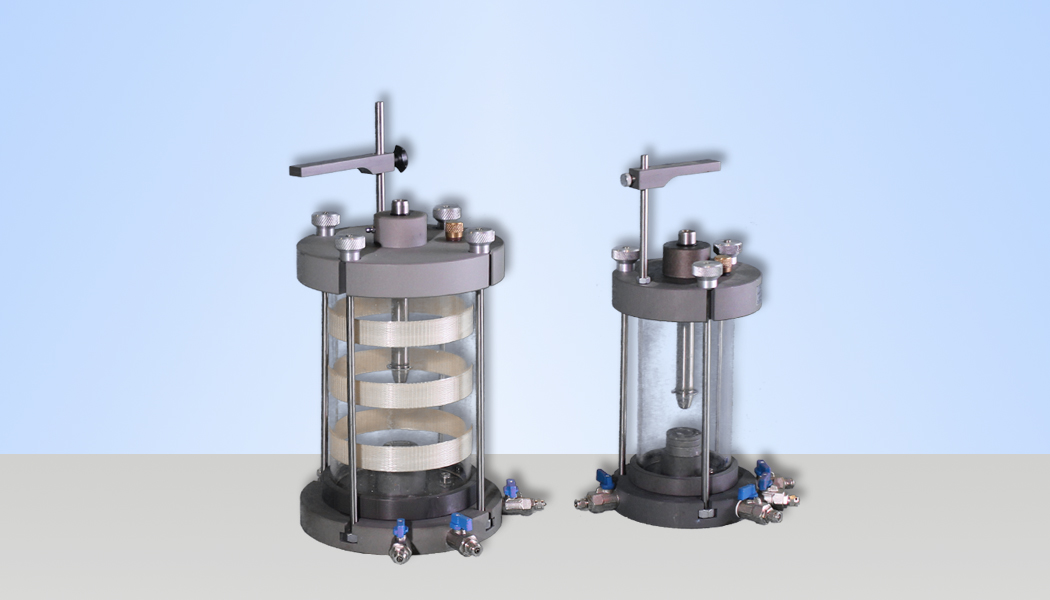

Soil Mechanic Industries of Iran Company (S.M.I) produces a wide range of triaxial cells in order to meet a wide range of soil mechanics laboratory tests.These cells are designed in such a way as to minimize the corrosion. In the cells manufacturing cycle, cells produced with great precision and accuracy and particular attention has been paid to the quality such as the drilling of water flow path and grinding the loading shaft, up To final assembly and O-ring sealing.
| Standards: | ASTM D2850, D4767, BS 1377, AASHTO T296, T297 |
Technical specifications for static triaxial cells:
|
Description |
Cell Model 38 |
Cell Model 38 & 50 |
Cell Model 70 & 100 |
Cell Model 100 & 150 |
|---|---|---|---|---|
|
Order Code |
SMSO-6310 |
SMSO-6320 |
SMSO-6360 |
SMSO-6380 |
|
Dimension |
Ø25×40 Cm |
Ø31×44 Cm |
Ø38×58 Cm |
Ø45×72 Cm |
|
Weight approx |
5.160 Kg |
9.500 Kg |
18.800 Kg |
35 Kg |
|
Specimen Dia. |
38 mm |
38 mm, 50 mm |
70 mm, 100 mm |
100 mm, 150 mm |
|
Max. Specimen length |
102 mm |
150 mm |
305 mm |
455 mm |
|
Max. Test Pressure |
16 Bar (1600 kPa) |
16 Bar (1600 kPa) |
16 Bar (1600 kPa) |
16 Bar (1600 kPa) |
| Approximate volume |
1200 cc |
3650 cc |
8850 cc |
17850 cc |
|
Loading Capacity |
45 KN |
45 KN |
45 KN |
45 KN |
|
Components Material |
Aluminum, Plexiglass |
Aluminum, Plexiglass |
Aluminum, Plexiglass |
Aluminum, Stainless Steel |
|
Type of case (shield) |
transparent |
transparent |
transparent |
unclear |
