Asphalt Centrifuge Extractors

In order to determine the important parameters of asphalt such as material gradation, bitumen percent and the type of bitumen used in asphalt, etc. can be used the asphalt testing analysis. Separation the bitumen and aggregates from each other in asphalt mixtures called asphalt analyzing.

To perform this test, first, we need to take samples from asphalt, depending on the asphalt that has been beaten or not, the sampling will be different. Sampling should be done on the basis of Statistical Sciences, the taken sample could be represented proper quality of the asphalt. The obtained sample disintegrate by using separators machine which has a high speed, this device called Extraction of Asphalt (Asphalt Extractor) or Centrifugal Extraction of Asphalt (Asphalt Centrifuge Extractor). Soil Mechanic industries of Iran produce these devices with the different models and capacities.

Standards:
ASTM D2172, EN 12697-1, AASHTO T164

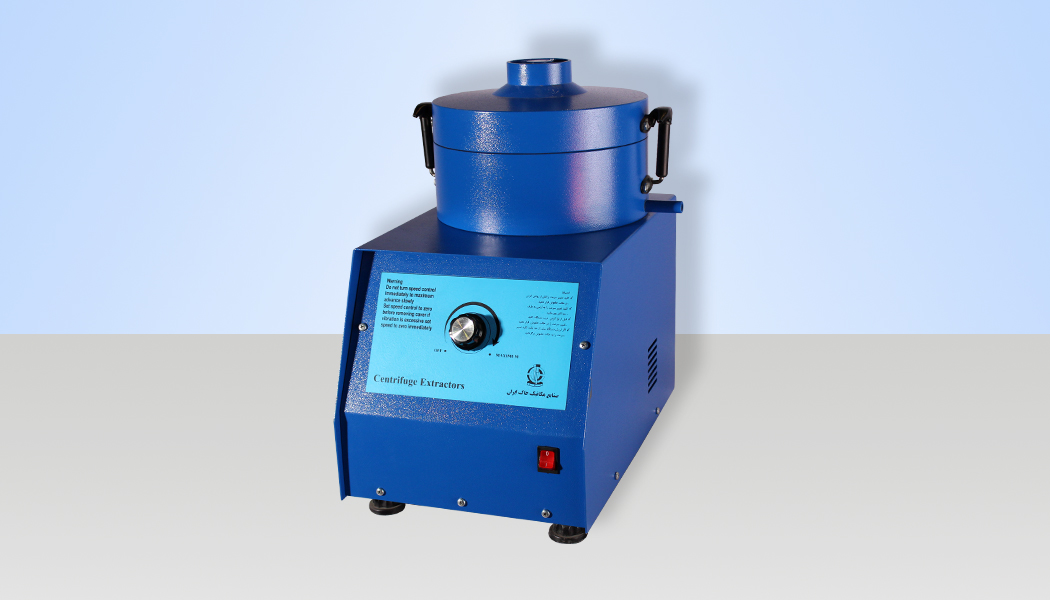

  • Centrifuge_Extractor_Electric_11

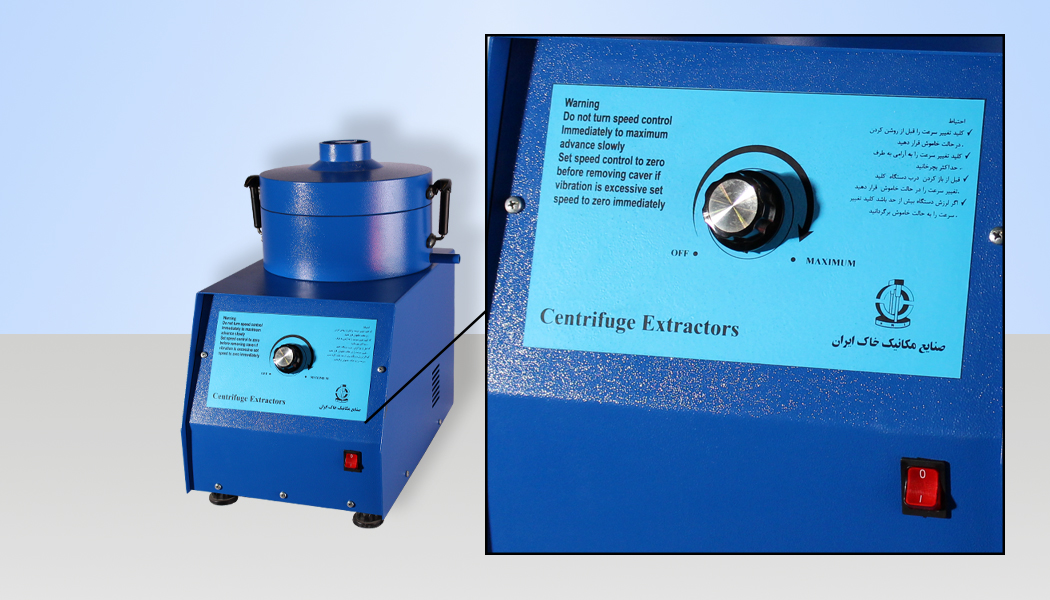

  • Centrifuge_Extractor_Electric_12

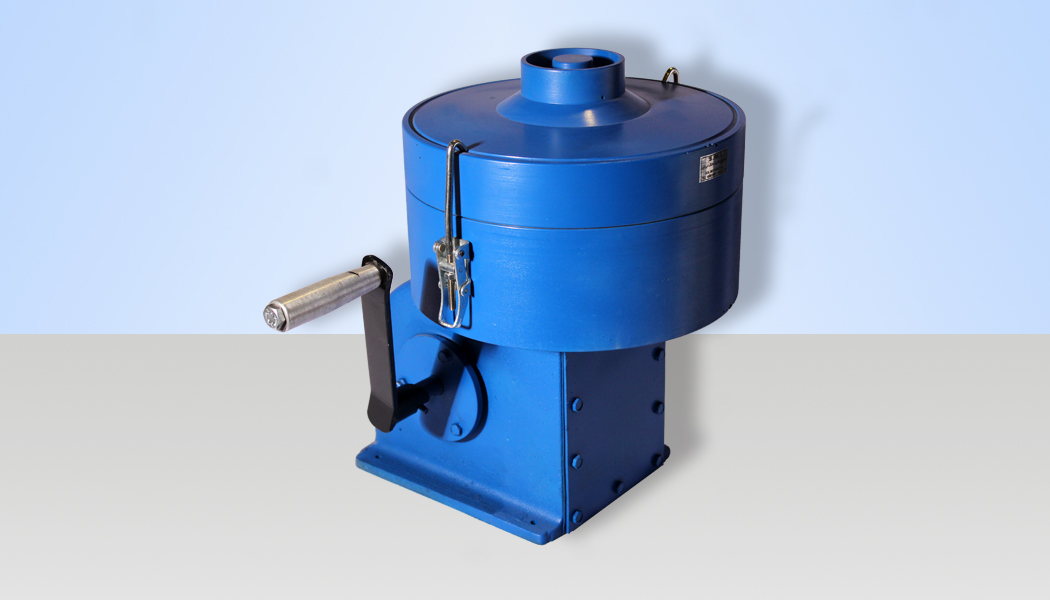

  • Centrifuge_Extractor_hand_11

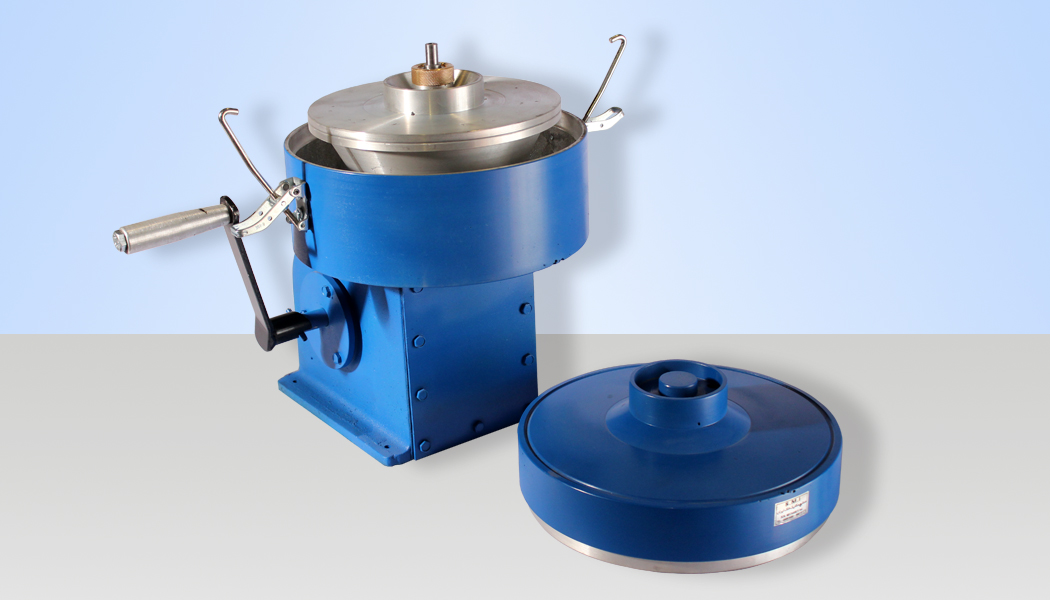

  • Centrifuge_Extractor_hand_21

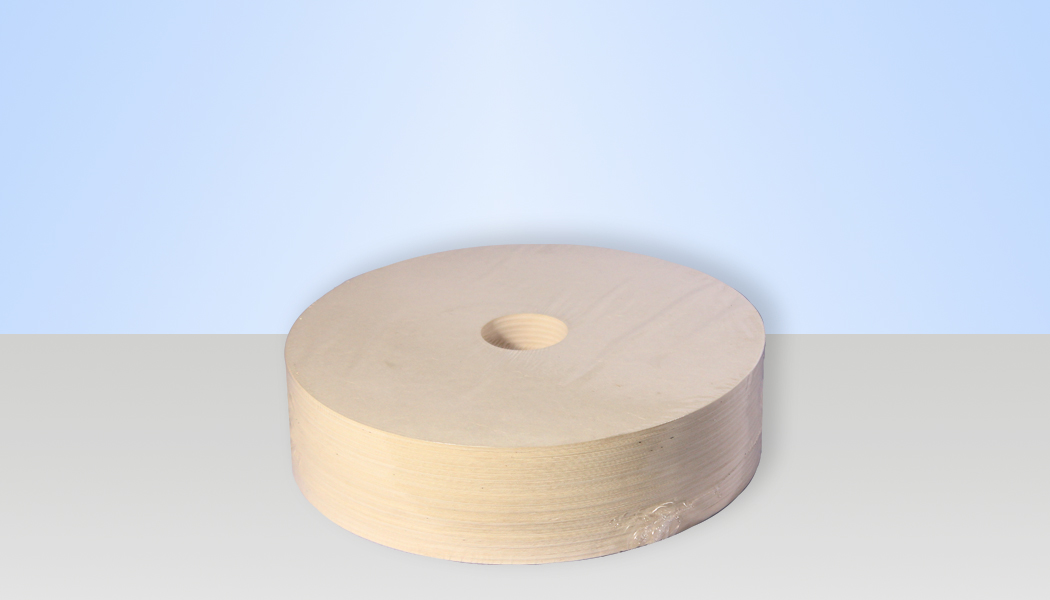

  • Filter_Paper_11

Technical Specifications:

Description

1.5 Kg Asphalt
Centrifuge Extractor

1.5 Kg Asphalt
Centrifuge Extractor
1.5 Kg Asphalt
Centrifuge Extractor

Ordering Code

SMAS-1315

SMAS-1316

SMAS1320

Dimension L×W×H

43×35×43 Cm
36×52×55 Cm
...×...×... Cm

Weight Approx.

22 Kg
51 Kg ? Kg

The approximate capacity
of the internal bowl

1.5 Kg
1.5 Kg 3 Kg

Type of operation

Manual Electrical Electrical

Speed RPM


0-3000 rpm 0-3000 rpm

Power Supply


220 V, 1 ph 220 V, 1 ph
Material of internal
bowl and lid
Aluminum Aluminum Aluminum

Material of outside container

Aluminum Aluminum Aluminum

Testing Equipment:

Filter Paper
SMAS-1305
Quantity in each pack
100

Dimension
Ø247/45 mm

Weight to Surface ratio
300 gr/m²

Filter Paper
SMAS-1310
Quantity in each pack
100

Dimension
Ø247/45 mm

Weight to Surface ratio
520 gr/m²
