Flow Table

Flow table used for fluency measurement of cement (flow). The amount of flow measured by the percentage of increasing diameter the mortar of cement, which is in a cone-shaped mold, flow table made from a brass casting which is located on a hard steel frame in diameter 10 in (254 mm), with the help of a rotating handles and tonsillar piece brass plates goes to a height of 1/2 in (12.4mm) directed upward and then falls. By the kicks generated cement flow from inside of the mold and flow calculate at the end of the diameter, plate at top of the table must be perfectly flat and free of any holes, This plate has been engraved by 8 lines with a length of 68mm, drawn from the outside circumference of the circle to inward divided into equal parts. The lines connect to the engraved circle with diameter of 59.5mm in the middle of the table.

Standards:
ASTM C230, BS 4551, 3892-1

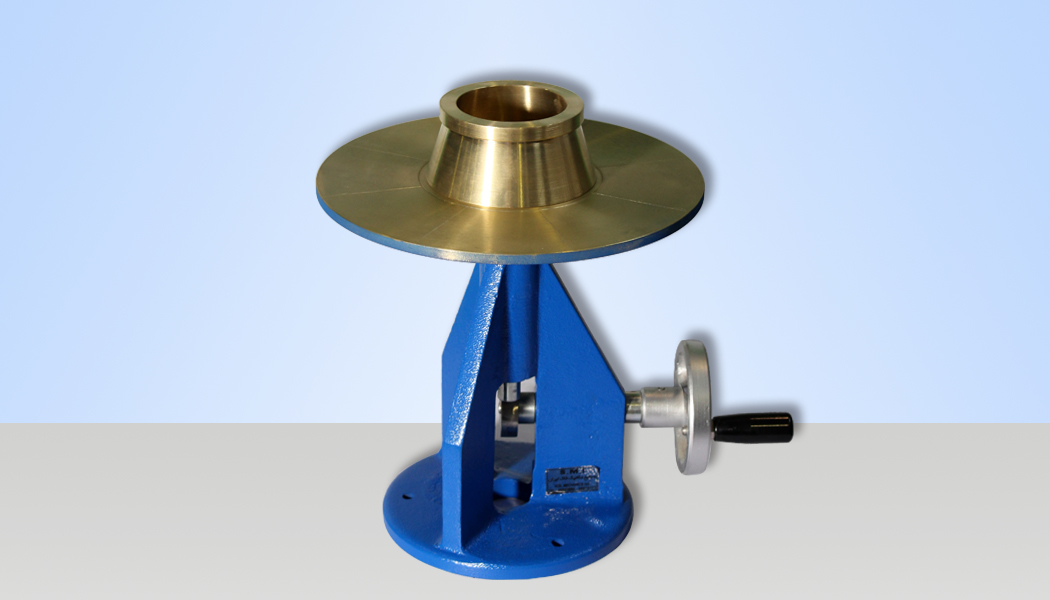

  • Cement_Flow_Table_11

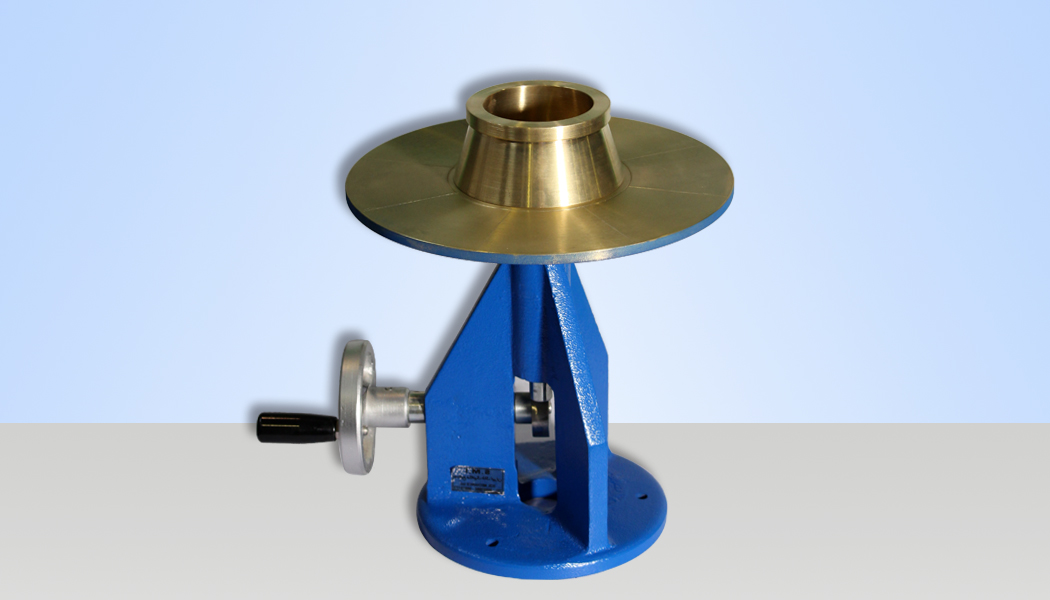

  • Cement_Flow_Table_12

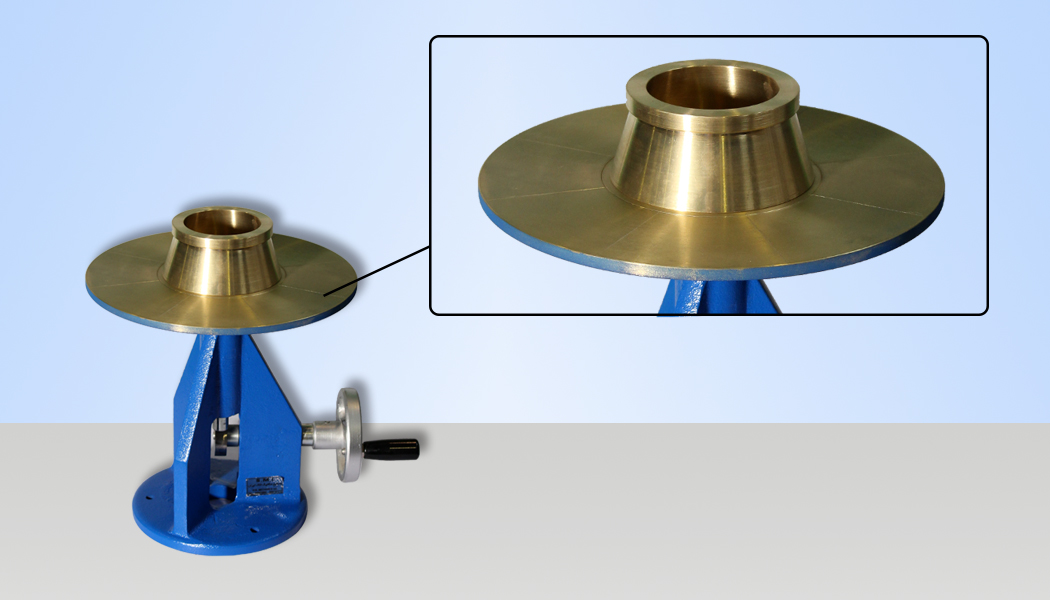

  • Cement_Flow_Table_13

Specifications:

Ordering
Code

Description

Weight

Dimension
mm

Material

SMCE-3610

Flow Table

10Kg

Ø380×325

Brass casting
and cast iron

SMCE-3611

Flow Mould

785gr

70/100 ID
96/115 OD
50 Height

Brass casting
