25 Ton Compressive Strength Machines

After Preparing the samples of cement paste or mortar after the process of molding, vibration and put it in humidity room, now it’s time to measure the compressive strength and bending of cement. The compression strength machines made and design by Soil Mechanic Industries of Iran, to obtain reliable results and non-contradictory different samples, this machine in addition to performing the compressive strength test also has ability to perform tests flexural/ tensile strength of 4×4×16 cm sample of cement only by adding a jaw also have capable of flexural strength testing.

Standards:
ASTM C109, BS 3892-1, 4551-1, EN 196-1, 413-2, 459-2, 1744-1, 1015-10, 13454-2

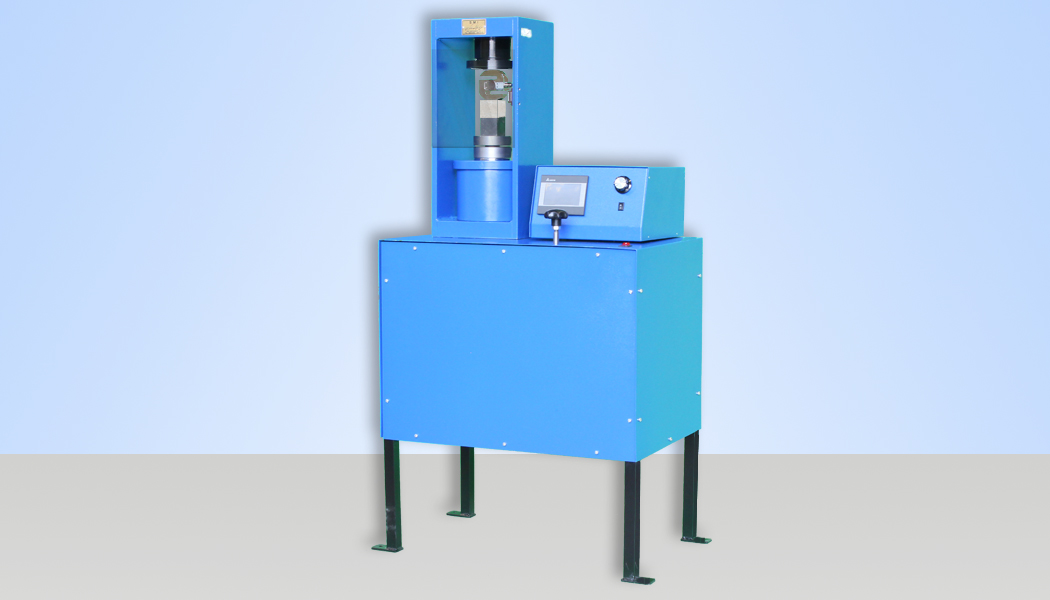

  • Compression_Machine_11

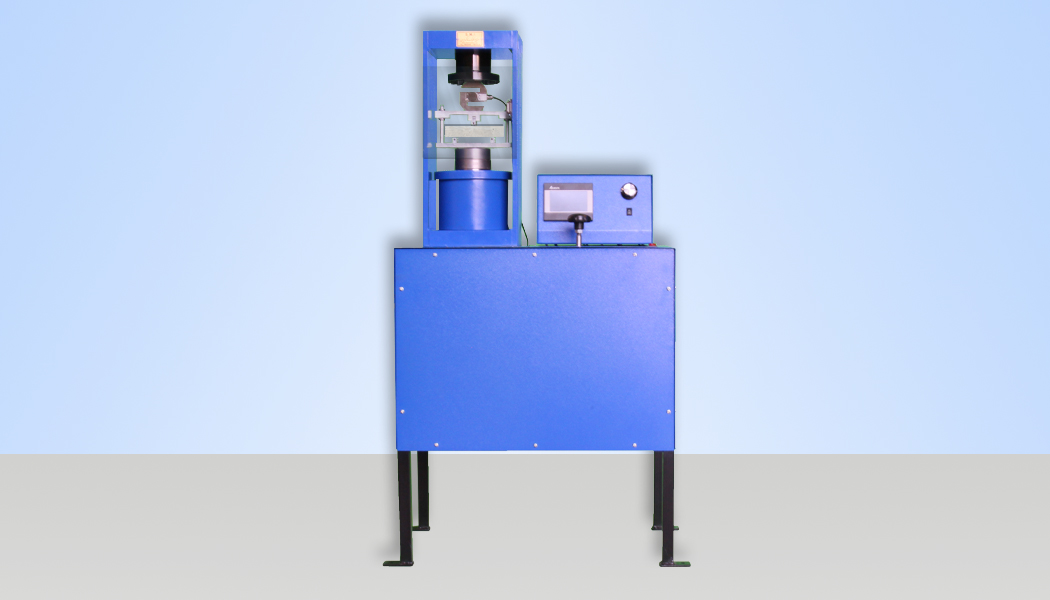

  • Compression_Machine_21

Specifications:

Description

25 Ton
Compression
Machine

Model CECM100

25 Ton
Compression
Machine

Model CECM101

Ordering Code

SMCE-7500

SMCE-7501

Dimension L×W×H

71×47×137 Cm

Weight Approx.

185 Kg

Dimension of testing sample

50×50×50 mm, 100×100×100 mm

Nominal Capacity

25 Ton

25 Ton

The maximum reading fault

1%

1%

Power separation

200 Kgf

100 Kgf

Determine the speed of loading

Manual

Automatic & Manual

Loading speed range

50  to  2000   Kg/sec
Load speed limit is a function of samples hardness. Minimum load speed increased with increasing hardness. By reducing the hardness the maximum load speed reduced

Display the speed

AV

AV

Display MOMENT SPEED

AV

AV

Display type

3” Touch screen

7” Touch screen

Memory storage of test results

100 Tests

2000 Tests

PC connectivity and transfer results to a PC

AV

AV

Ability to perform tests as controlled movement

NA

AV

Ability to plot the displacement force curve and determine the modulus of elasticity and Poisson coefficient.

NA

AV

The maximum distance between two jaws

11 Cm

Notes:

  • It should be noted in order to maintain and long-term performance of compression machine, it is recommended the force applied to the device does not exceed 80% of Nominal Capacity.
