General Expansion of Dry Hydrated Lime by the Le Chatelier Method

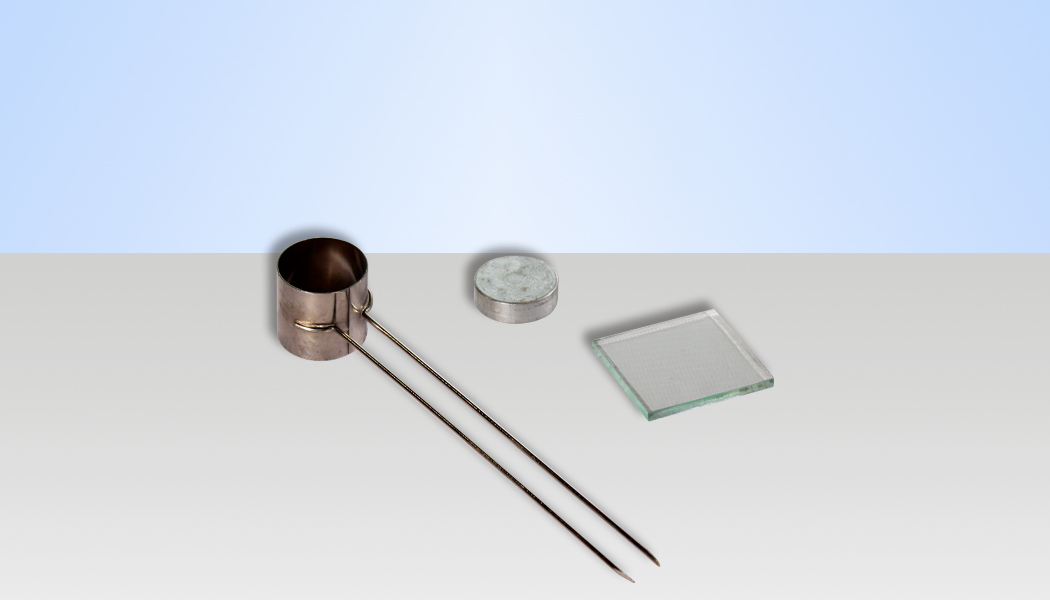

The Le Chatelier Mould, also referred to as the Le Chatelier Tonger or the Le Chatelier Machine, is also known as the Le Chatelier Mold, according to what is seen in the images, a scattered cylindrical stainless steel or other suitable metal with a thickness of 0.5 mm and an inner diameter of 30 mm and height of the cylinder is 30 mm (During testing these cylinders used instead of the mould) the gap locate between the two needles which in pointer shape with sharp head and the distance between the tip of the needle up to the center of cylindrical will be 165 mm. One series of Le chatelier mould include a mould, two glasses with dimensions of 4×44×47 mm and one weights of Ø30×9 mm grams.
Standards:
|
BS 6463, EN 196-3, 459-2
|
Le Chatelier Mould
|
SMCE-4110
|
