Determination of Particle Density and Water Absorption

To investigate the presence of surface moisture in aggregates in the test of density determination, relative density (specific gravity) and the absorption of fine aggregates (20 mm and smaller) used an incomplete Cone molded metal with dimensions: 40 mm top internal diameter, 90 mm bottom inner diameter, 75 mm high, minimum thickness of 0.8 mm and a Tamping Rod 340 gr weight and 25 mm diameter of impact surface.

Standards:
ASTM C128, BS 812, AASHTO T84

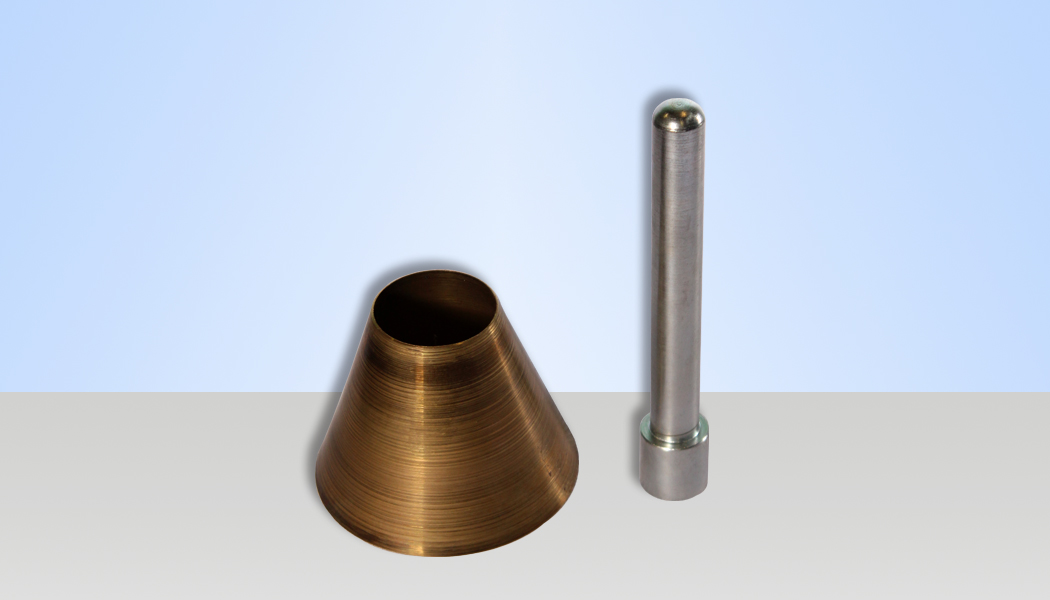

  • Sand _Absorption_Cone_Tamping_Rod_11

Ordering Code DescriptionMaterial

SMAG-4210

Sand Absorption Cone with Tamping Rod

Steel and brass

SMAG-4211

Sand Absorption Cone Brass

SMAG-4212

Tamping Rod Nickel-plated steel
