Furnaces

Furnaces are used for ceramic cooking, glazing, particle breakdown, heating, burning and ash all materials up to 1200 degrees Celsius.

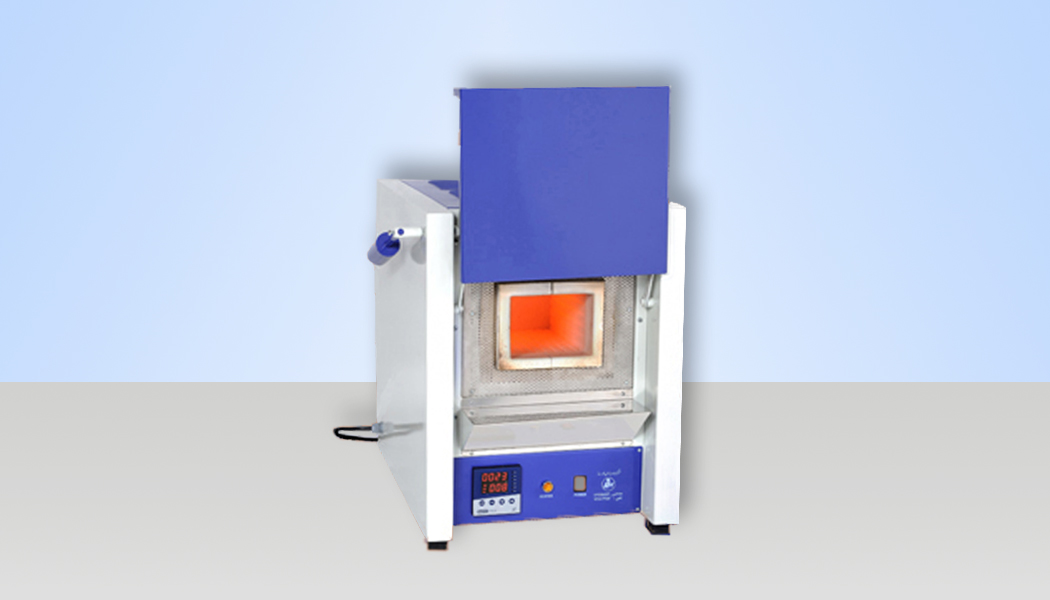

  • Furnace_12

Description
Furnace
Model FM2.8
Furnace
Model FM20
Ordering Code
SMGE-9810
SMGE-9840
Useful Volume
Lit
2.8
20
Temperature Range
50-1200 °C
50-1200 °C
Power Supply
220V, 50Hz, 2200W, 10A
220V, 50Hz, 4800W, 22A
Maximum reach of
1000 degrees Celsius
without load
75 min
75 min
Heat Conversion
Overshoot
Maximum
5 °C 5 °C
Maximum thermal
equilibrium at
100 ° C
+3 °C
+3 °C
Controller Type
Digital
Digital
Controller Sensitivity
1 °C
1 °C
Net Weight
45 Kg
-- Kg
Internal Dimensions
D×W×H
23×15×8 Cm
46×22×20 Cm
Dimensions
D×W×H
55×47×58 Cm
71×50×70 Cm
Element
KANTAL A1-ALKROM O - Ø1 mm
KANTAL A1-ALKROM O - Ø2 mm
External body
Iron Sheet with Resistant furnace color
Inner Chamber Material
CORACAST G
Insulation
Insulating bricks and ceramic fiber
