Masonry Saw

Sometimes it may be necessary to change the dimensions of the prototype before testing. In general, all specimens obtained by scraping (samples of concrete, stone, etc.) require the leveling of the cross-section. For this purpose, cutting devices are used to flatten the surfaces and to measure the size of the samples.

  • MS400_Golz_11
  • MS400_Golz_12
  • MS400_Golz_13
  • MS400_Golz_14
  • MS400_Golz_15
  • MS400_Golz_16
  • MS400_Golz_17

Description

Masonry Saw
Model GÖLZ ST450

Masonry Saw
Model GÖLZ MS400

Ordering Code
SMGE-9610
SMGE-9620
Max. cutting
depth
175 mm
137 mm
Cutting length
650 mm
700 mm
Max. blade
size
450 mm
400 mm
Arbor hole
25.4 mm
25.4 mm
Cutting table
(LxW)
400×480 mm
600×530 mm
Shaft speed
2650 rpm
2800 rpm
Motor 220 V, 50 Hz, 2.2 kW 220 V, 50 Hz, 2.2 kW
Dimensions
(LxWxH)
1130×590×1370 mm
1100×842×1290 mm
Weight 106 kg 66 kg
Features

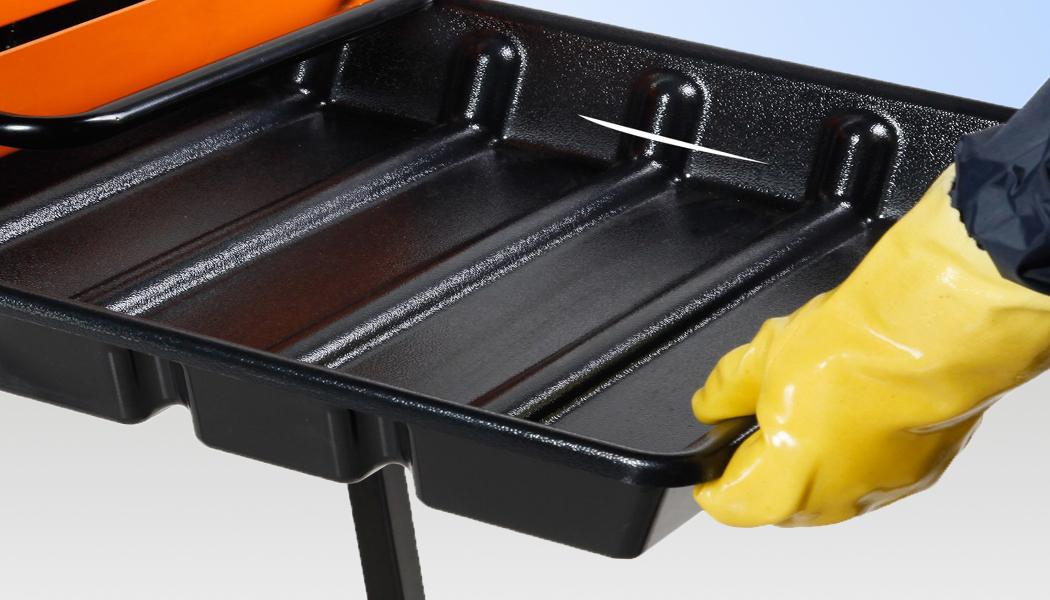

  • Removable water tub, easy for cleaning
  • Removable blade guard for easy blade change
  • Foldable legs

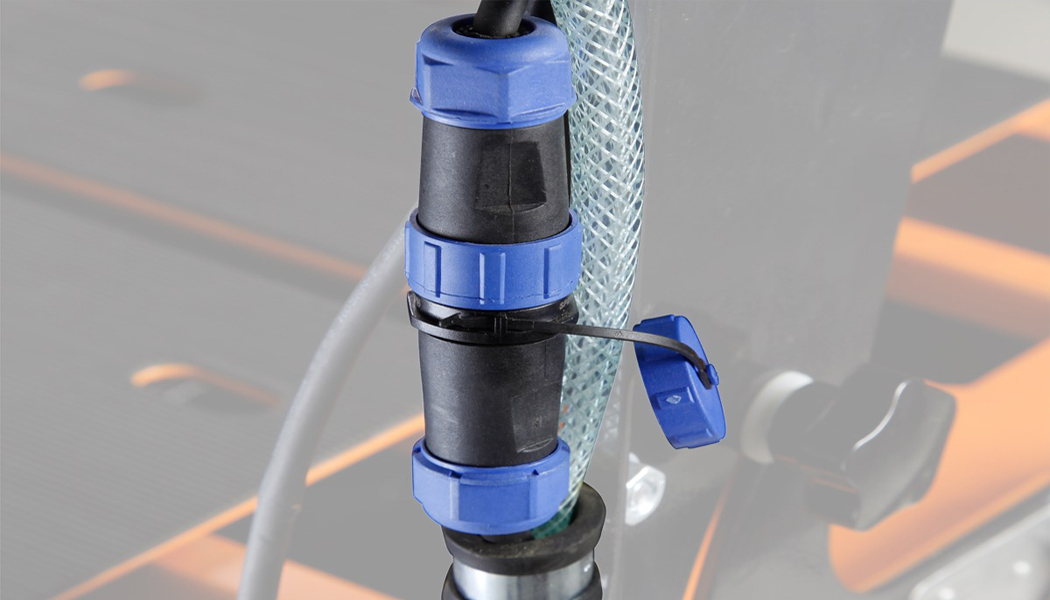

  • Electric water pump with quick coupling, easy for changing the pump
  • Removable blade guard for easy blade change

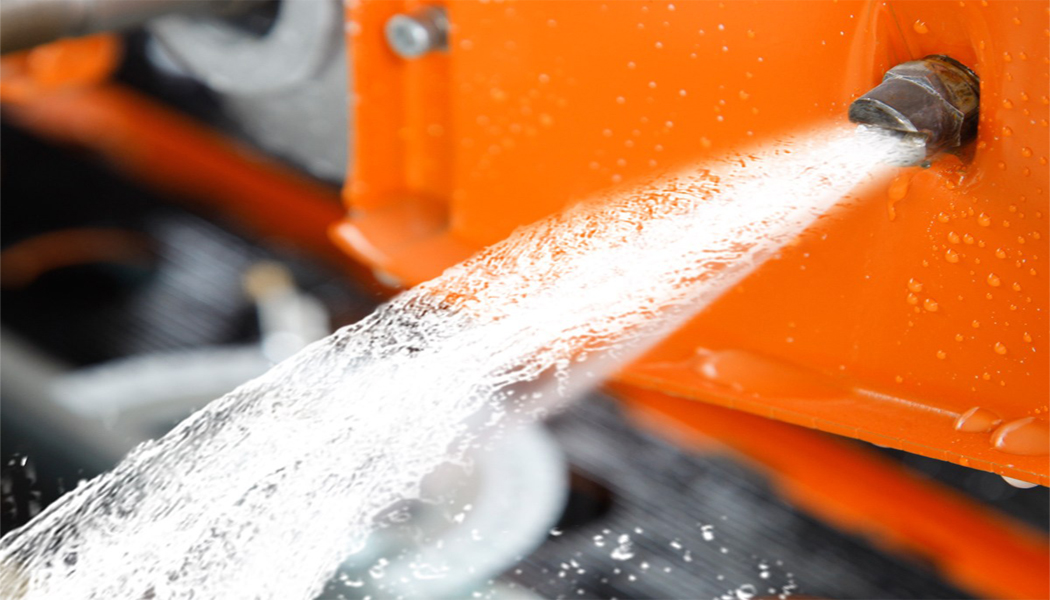

  • Special water nozzle for optimized water cooling

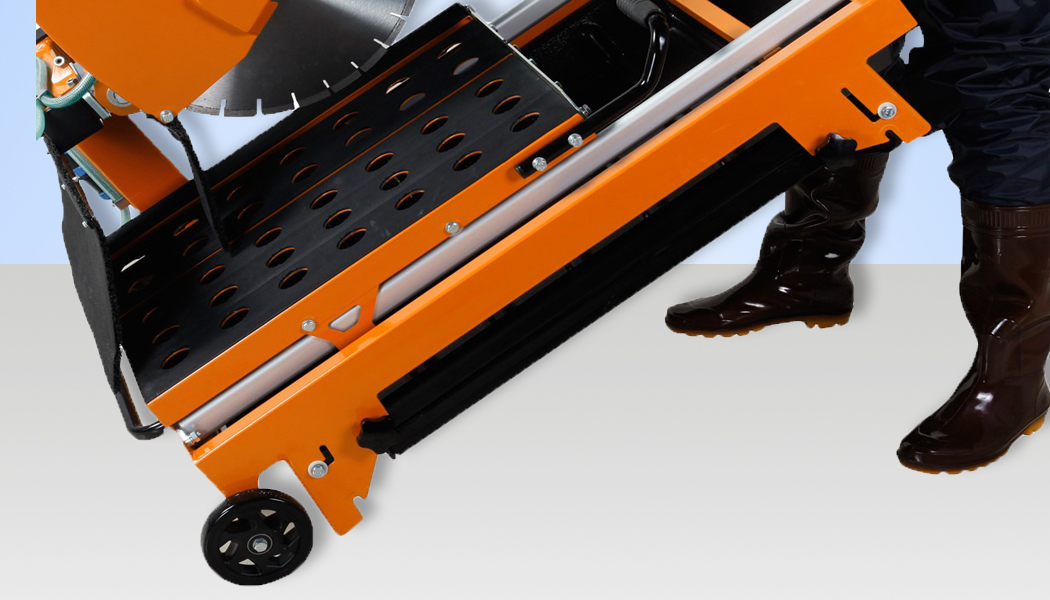

  • Transportation wheel, easy for moving
  • Removable water tub, easy for cleaning
  • Removable blade guard for easy blade change
  • Foldable legs
  • Electric water pump with quick coupling, easy for changing the pump
  • Removable blade guard for easy blade change
  • Special water nozzle for optimized water cooling
  • Transportation wheel, easy for moving
