Load
In order to measure the force input on the specimen in the geotechnical tests and the materials resistance, the Load rings or Loadcells are used. The Soil Mechanic Industries of Iran Company has been designing and manufacturing Load rings and also import of Loadcells in various capacities and in accordance with international standards.

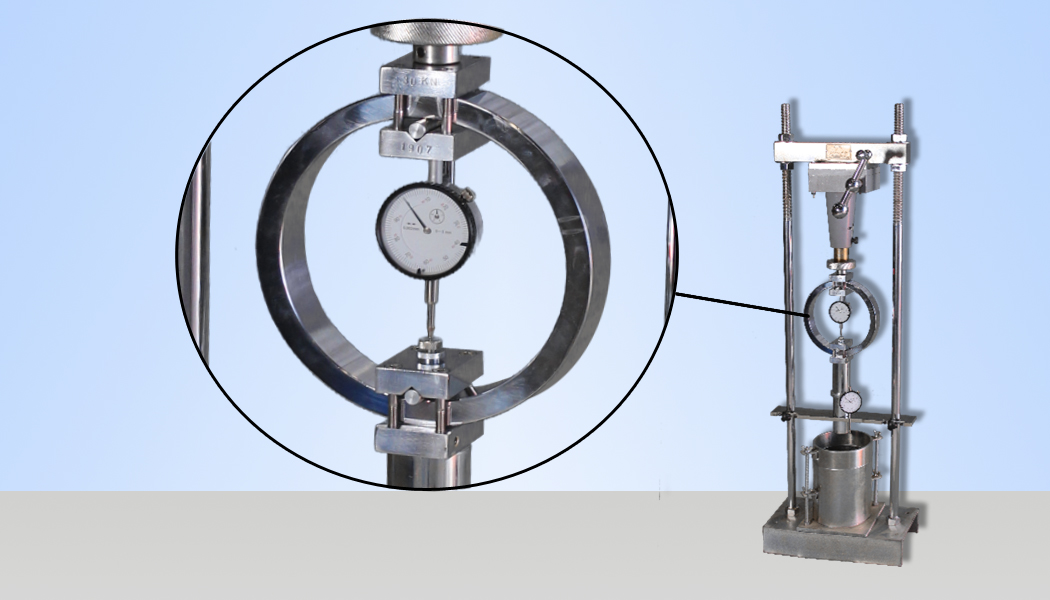

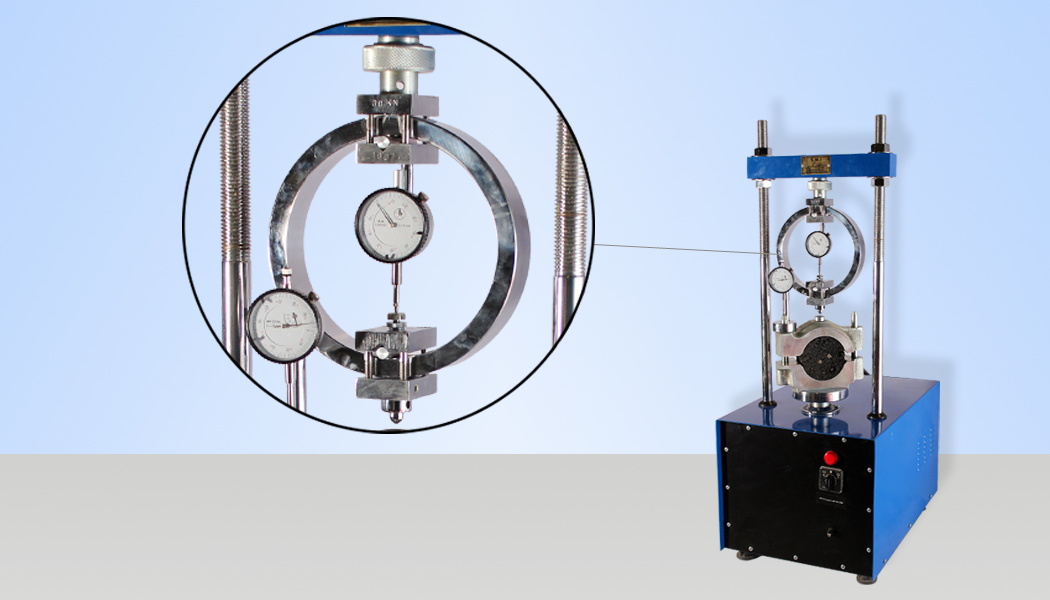

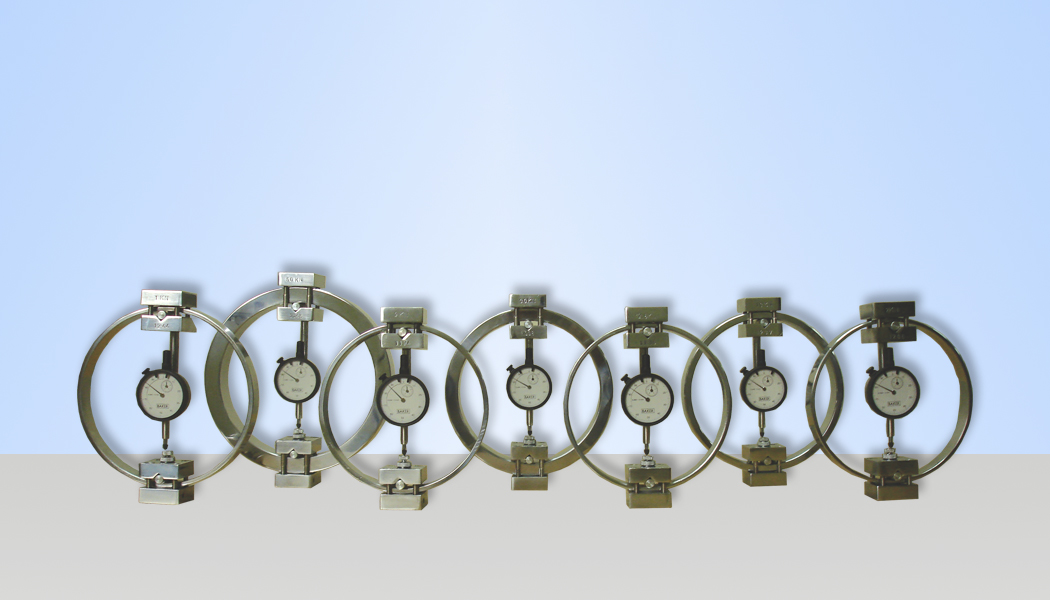

Load rings:
| Ordering Code |
Capacity
|
Overall height
mm
|
Approx weight
Kg
| |
|---|---|---|---|---|
|
Kgf
| KN | |||
|
SMGE-2110
|
100 |
1
|
230
|
1.880
|
|
SMGE-2115
|
200
|
2
|
210
|
1.780
|
|
SMGE-2125
|
300
|
3
|
215
|
1.910
|
|
SMGE-2135
|
500
|
5
|
230 |
2.180
|
|
SMGE-2140
|
1000
|
10
|
230
|
2.470
|
|
SMGE-2145
|
2000
|
20
|
230
|
3.510
|
|
SMGE-2150
|
3000
|
30
|
240
|
4.135
|
|
SMGE-2155
|
4000
|
40
|
265 |
4.920
|
|
SMGE-2160
|
5000
|
50
|
265
|
5.285
|
|
SMGE-2165
|
10000
|
100
|
---
|
--- |
Load Rings manufacturing by SMI Company according to the standard included 5 mm travel × 0.002 mm divisions dial gauges.
