Test Sieves

It is common practice to use a Sieve test to obtain the size distribution of sand grains. The process is described in ASTM C 136. To do this, a piece of the sieve is used, with the holes in the floor having a precise, and this grid is made using a wire. So that the set of sieves are put together, the sieve is placed in a hole with larger holes above and the smaller sieve is placed down, then the dry soil, where all the hollows are broken and only the soil grains are present on the sieve. They shed the top and shifted the sieve for a period of time (according to standard) so that the soil grains pass through it. It is clear that beads are smaller than sieve holes and larger beads remain on the sieve wires.

  • Note: This method is logical for coarser seeds, but for smaller grains, it is not suitable because the grains of the very fine soil stick together and thus the method of the silk will no longer be suitable. If the amount of fine grains is high, we may first have to pass through the soil and rough beans, and after washing larger particles and destroying the husk, we begin to sift.

A series of sieves with different sizes available. The boundary between sand and gravel is chosen arbitrarily. According to the Soil Classification System, to remove gravel from the sand is used the sieve No. 4 (4 holes per 1 inch). The hole size of this sieve is 4.75 mm and to remove the sand from the silt and clay from NO. 200 whose hole size is 0.075 mm. According to the English Standard, 0.063 mm is the boundary between sand and slab, and 2 mm is the border between the sand and the oceans.

Standard: ASTM C136

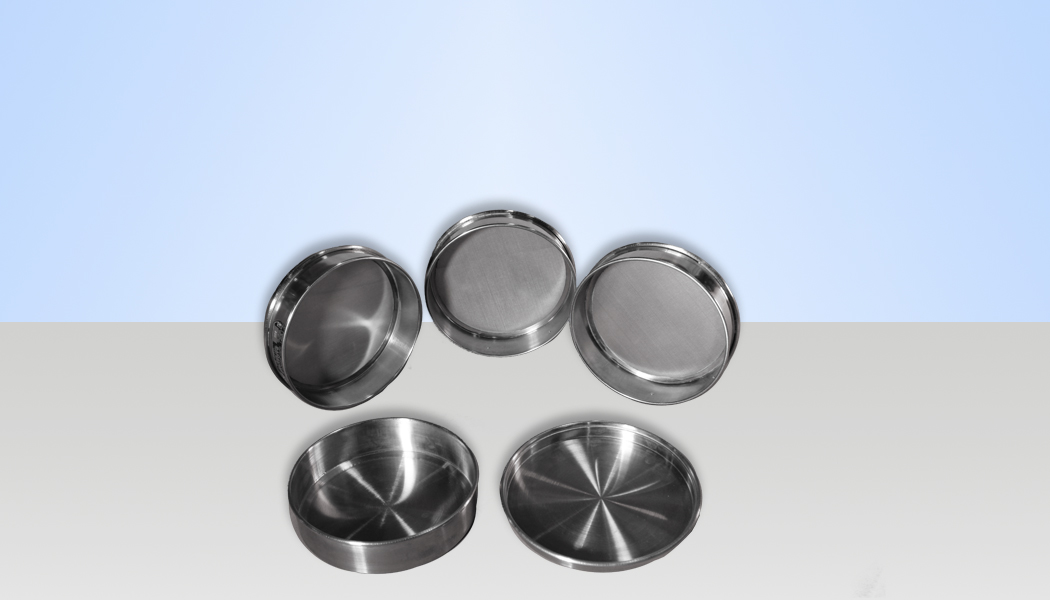

  • Sieves_11

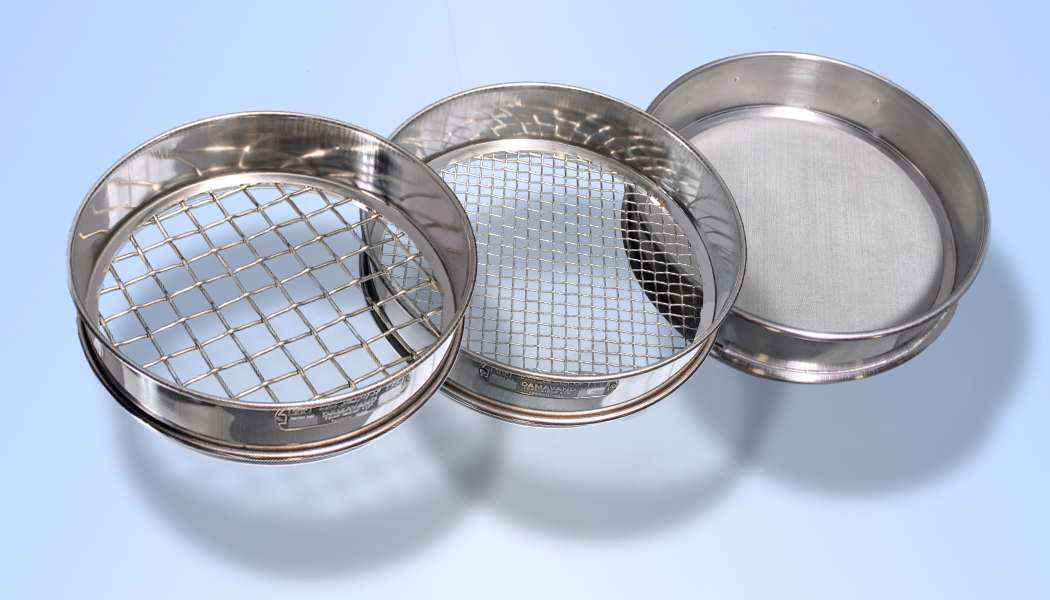

  • Sieves_12

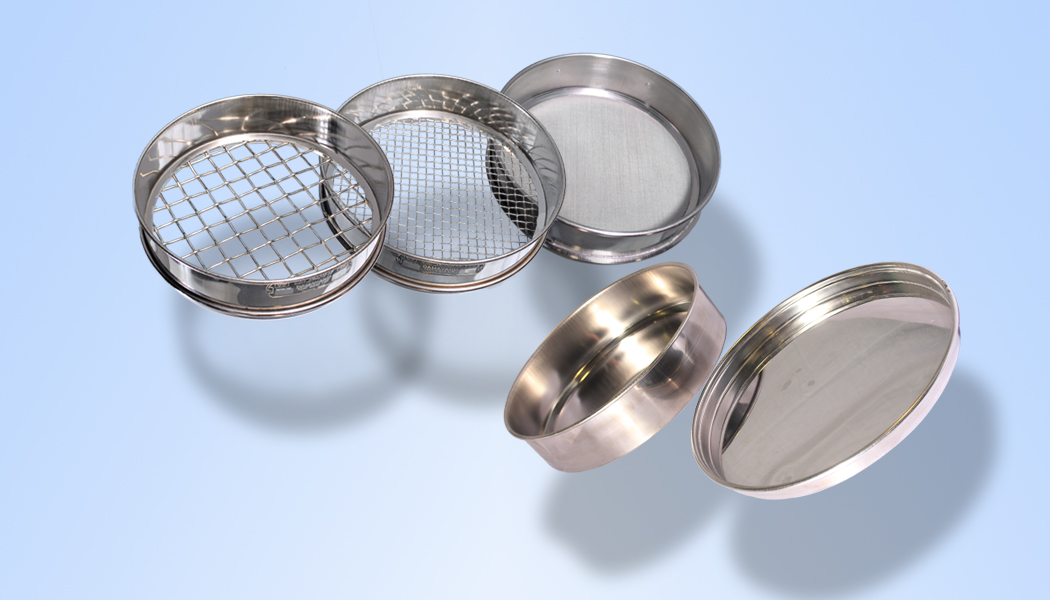

  • Sieves_13

Sieves Size:

Aperure Size
Alternative
Designation
Frame Diameter
8 Inch12 Inch
38 µm
NO. 400
SMGE-5005
SMGE-5305
45 µm
NO. 325
SMGE-5010
SMGE-5310
53 µm
NO. 270
SMGE-5015
SMGE-5315
63 µm
NO. 230
SMGE-5020
SMGE-5320
75 µm
NO. 200
SMGE-5025
SMGE-5325
90 µm
NO. 170
SMGE-5030
SMGE-5330
100 µm
NO. 150
SMGE-5034
SMGE-5334
106 µm
NO. 140
SMGE-5035
SMGE-5335
125 µm
NO. 120
SMGE-5040
SMGE-5340
150 µm
NO. 100
SMGE-5045
SMGE-5345
180 µm
NO. 80
SMGE-5050
SMGE-5350
212 µm
NO. 70
SMGE-5055
SMGE-5355
250 µm
NO. 60
SMGE-5060
SMGE-5360
300 µm
NO. 50
SMGE-5065
SMGE-5365
355 µm
NO. 45
SMGE-5070
SMGE-5370
425 µm
NO. 40
SMGE-5075
SMGE-5375
500 µm
NO. 35
SMGE-5080
SMGE-5380
600 µm
NO. 30
SMGE-5085
SMGE-5385
710 µm
NO. 25
SMGE-5090
SMGE-5390
850 µm
NO. 20
SMGE-5095
SMGE-5395
1.00 mm
NO. 18
SMGE-5105
SMGE-5405
1.18 mm
NO. 16
SMGE-5110
SMGE-5410
1.40 mm
NO. 14
SMGE-5115
SMGE-5415
1.70 mm
NO. 12
SMGE-5120
SMGE-5420
2.00 mm
NO. 10
SMGE-5125
SMGE-5425
2.36 mm
NO. 8
SMGE-5130
SMGE-5430
2.80 mm
NO. 7
SMGE-5135
SMGE-5435
3.35 mm
NO. 6
SMGE-5140
SMGE-5440
4.00 mm
NO. 5
SMGE-5145
SMGE-5445
4.75 mm
NO. 4
SMGE-5150
SMGE-5450
4.76 mm
3/16"
SMGE-5463
5.60 mm
NO. 3 ½
SMGE-5155
SMGE-5455
6.30 mm
¼" SMGE-5160 SMGE-5460
6.70 mm
0.265"
SMGE-5165
SMGE-5465
8.00 mm
5/16"
SMGE-5170
SMGE-5470
9.50 mm
⅜"
SMGE-5175
SMGE-5475
11.2 mm
7/16"
SMGE-5180
SMGE-5480
12.5 mm
½"
SMGE-5185
SMGE-5485
13.2 mm
0.530"
SMGE-5190
SMGE-5490
16.0 mm
⅝"
SMGE-5195
SMGE-5495
19.0 mm
¾"
SMGE-5205
SMGE-5505
22.4 mm
⅞"
SMGE-5210
SMGE-5510
25.0 mm
1"
SMGE-5215
SMGE-5515
26.5 mm
1.06"
SMGE-5220
SMGE-5520
31.5 mm
1¼"
SMGE-5225
SMGE-5525
37.5 mm
1½"
SMGE-5230
SMGE-5530
45.0 mm
1¾"
SMGE-5235
SMGE-5535
50.0 mm
2"
SMGE-5240
SMGE-5540
53.0 mm
2.12"
SMGE-5245
SMGE-5545
63.0 mm
2½"
SMGE-5250
SMGE-5550
75.0 mm
3"
SMGE-5255
SMGE-5555
90.0 mm
3½"
SMGE-5260
SMGE-5560
100 mm
4"
SMGE-5265
SMGE-5565
125 mm
5"
SMGE-5275
SMGE-5575
  • Lid and Reciever for 8-inch diameter sieves SMGE-5285
  • Lid and Reciever for 12-inch diameter sieves SMGE-5580
  • 75 µm Washing Sieve 8 in diameter × 8 in deep SMGE-5280
