Drying, Shrinkage and Moisture Movement

This unit for recommendations made to the standards ASTM and BS EN designed and built. Where needed laboratory tests on samples or on samples taken from existing structures is done. The aim of the experiment is to measure changes in a concrete or cement mortar sample alters its moisture content.

Terms:

  1. Drying shrinkage of the primary:The difference between the lengths of a molded sample of fresh concrete, with the length of the same dry sample.
  2. Shrinkage due to drying:The difference between the length of an adult specimen cut from the concrete and saturated with the sample in dry condition.
  3. Movement of moisture content:The difference between the fixed length of the sample after it has been saturated with water.
Standards: ASTM C490, C348, BS EN 12617-4, 12808-4

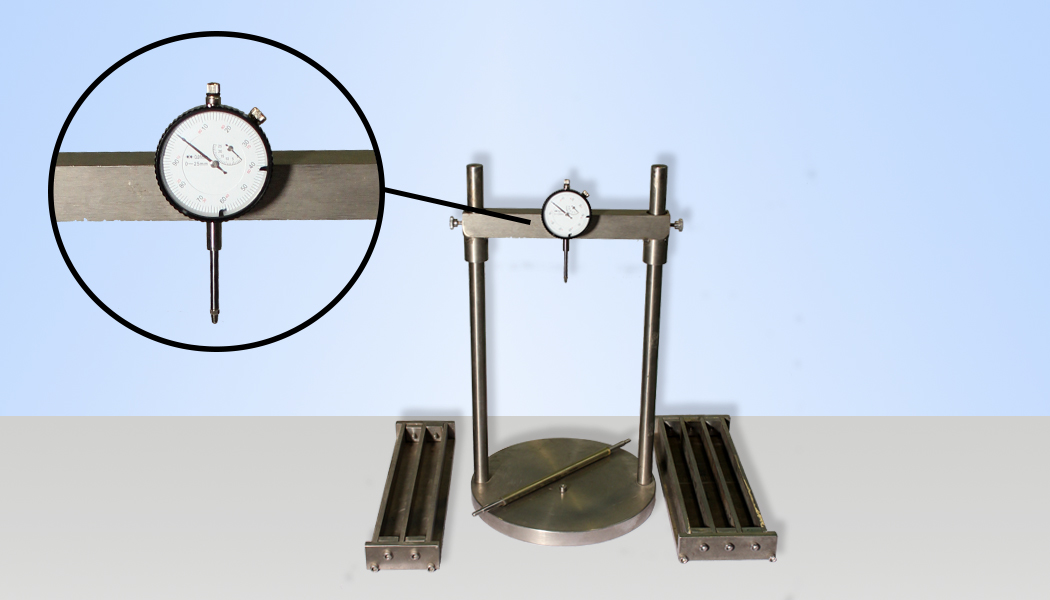

  • Drying_Shrinkage_11

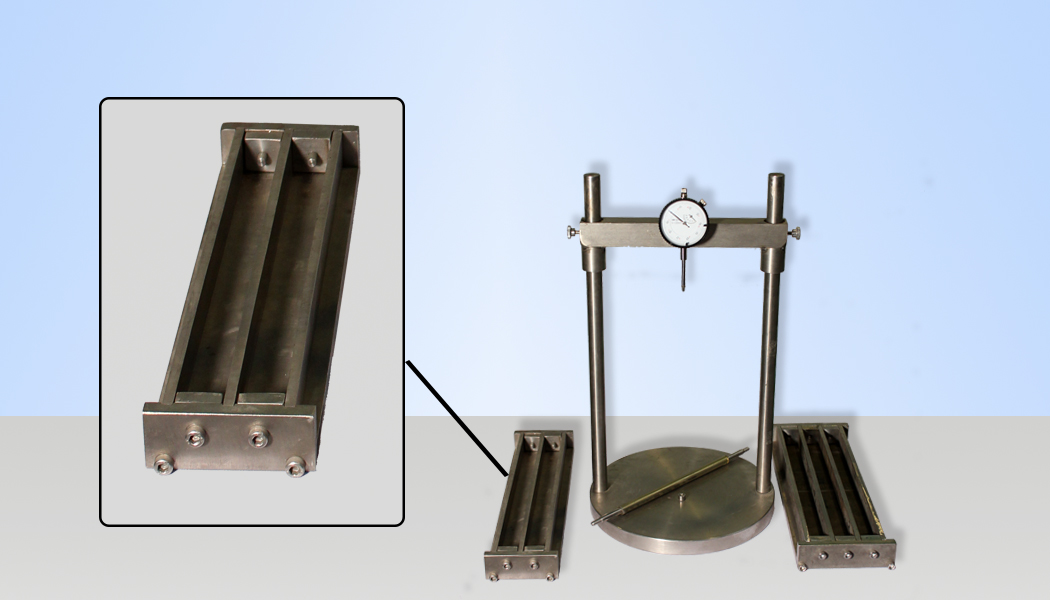

  • Drying_Shrinkage_12

Testing Equipment:

Ordering
Code
 Description
Dimension
Cm
Weight
Kg
MaterialComments

SMCO-1910

Drying, Shrinkage and Moisture Movment
Apparatus for 25×25×285 Samples

Ø25×46

12.425

 Stanless Steel

Gage of 5mm travel and 0.002mm accuracy offered

SMCO-1915

Drying, Shrinkage and Moisture Movment
Apparatus for 75×75×400 Samples

Ø25×46

12.425

 Stanless Steel

Gage of 5mm travel and 0.002mm accuracy offered

SMCO-1920

25×25×285 Two-gang Prism Mould

34×9×3.5

3.845

Stanless Steel

SMCO-1921

25×25×285 Three-gang Prism Mould

34×12×3.5

5.260

Stanless Steel

SMCO-1930

75×75×400 Prism Mould



Stanless Steel
