Slump Test

If you want correct and acceptable test results of concrete samples, should pay special attention to the sampling and mixing of fresh concrete, one of the very important factors in the strength and quality of concrete, is amount of the liquidity that measured by slump test in the workshop, this test the slump cone fill with a mixture of fresh concrete by using a steel rod and knocked in three layers, so that the mixture of fresh concrete to become up to the top of the cone slump, cone has been removed, and the stagnation of sample, measured immediately.

Standards:
ASTM C143, AASHTO T119, BS EN 12350-2

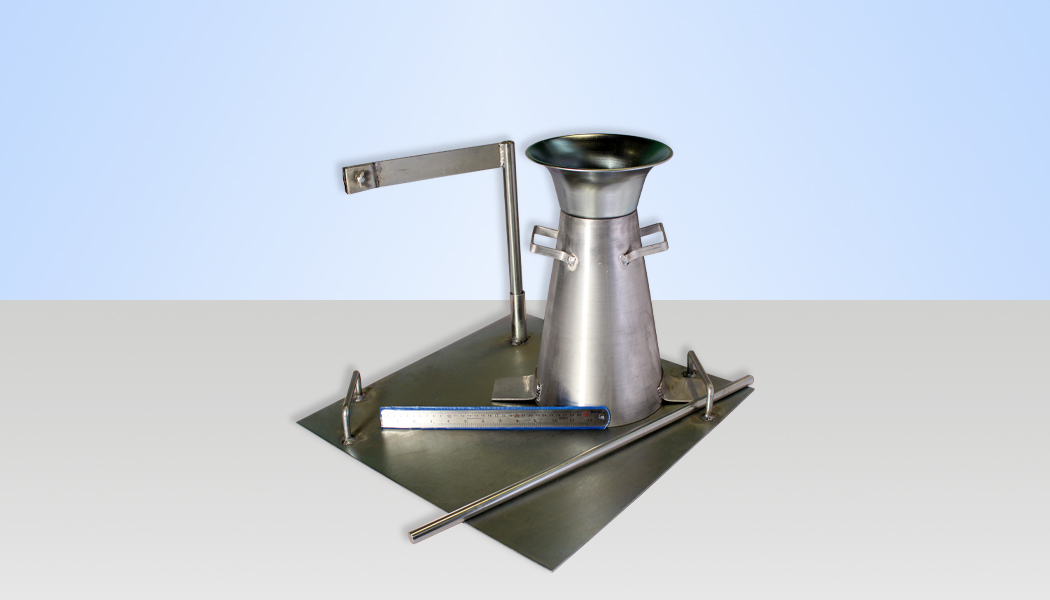

  • Slamp_Test_11

Technical Specifications:

Slump Test Apparatus

SMCO-1100

Ordering
Code

Description

Dimension
mm
Weight Approx
gr
Material

Technical Specifications

SMCO-1101

Slump Cone

Ø340×300

1065

Aluminum

With 2 handles and
2 feet fit for fixing

SMCO-1102

Tray (Base Plate)

500×500×3

6125

Iron Plate

With 2 handles for carrying and
base maintenance Slump Scale

SMCO-1103

Slump Cone Funnel

Ø200×100

210

Iron Plate



SMCO-1104

Slump scale

Ø22×350

4×260

1285

Alloy Steel



SMCO-1105

30 Cm Steel Ruler

25×330

30

Stainless Steel



SMCO-1106

Tamping Rod

Ø16×600

930

Alloy Steel
