Large-scale Direct Shear

Direct shear tests is an important in the case of Geotechnical Engineering (Soil Mechanics and Foundation) to determine soil strength parameters in terms of consolidated-drained (CD). In this test, first soil under the specific vertical stress become consolidated, then while stabilizing vertical stress, shear stress is set to speed, apply to soil sample until the sample is ruptured. The maximum shear stress for a specific vertical stress, gives the coordinates of a point. Tests are usually performed with three different vertical stress and thus coordinate system "shear stress - vertical stress" three points is obtained that draw the best line passing through the points, soil strength parameters of (C, Φ) are determined.

Direct shear test apparatus, which is manufactured by Soil Mechanic Industries of Iran Co., designed and produced accordance with international standards such as ASTM.

Standards: ASTM D3080, BS EN 1377,

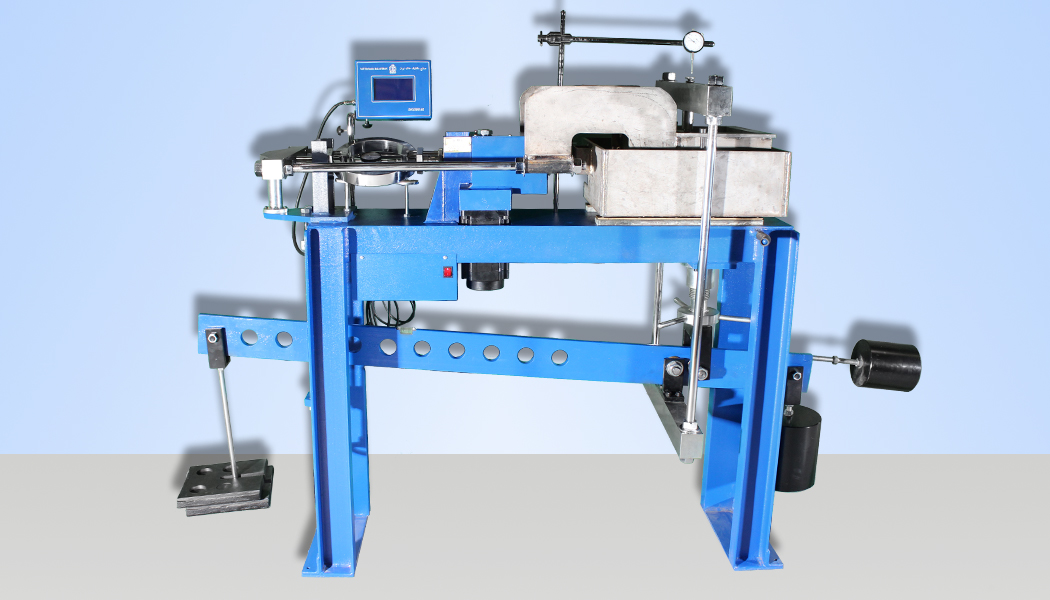

  • Direct_Shear_Large_11

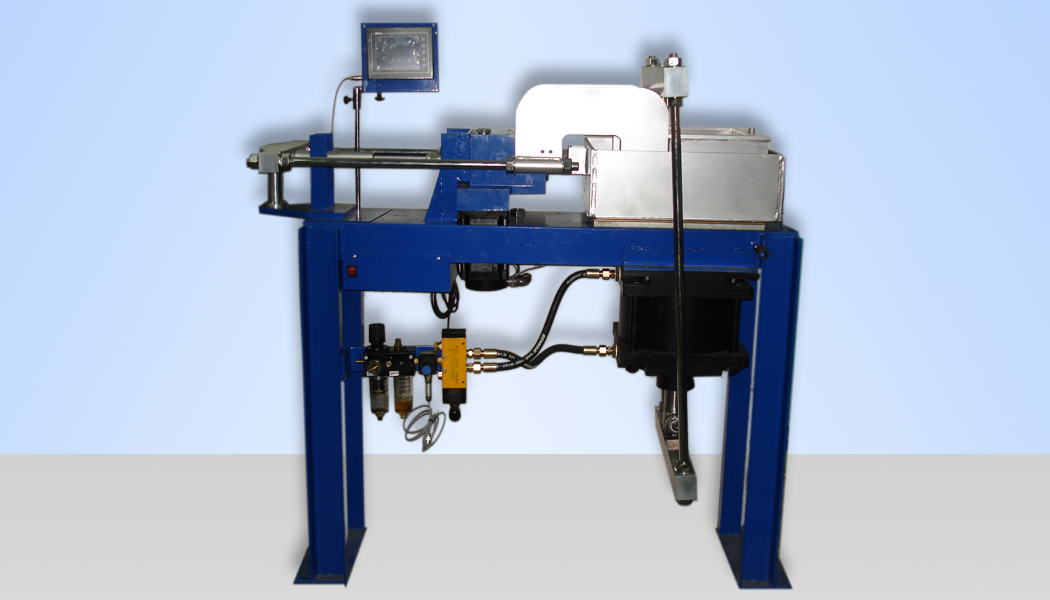

  • Direct_Shear_Large_12

Technical Specifications:

Description
Direct Shear Apparatus
30×30 Cm
Model DSH700
Direct Shear Apparatus
30×30 Cm
Model DSH701
Ordering Code

SMSO-7200

SMSO-7201

Dimension (L×W×H)

205×60×175 Cm

Weight approx

510 Kg Without weights

Set of Weights

224Kg = 9×20Kg + 2×10Kg + 2×5Kg + 2×4Kg + 2×3Kg + 2×0.5Kg

Beam Ratio

1:20

Sample Size

30×30 Cm

Load ring / Loadcell Capacity1

 5000 Kgf   2

5 Ton

Horizontal Dial Gauge /
Horizontal Sensor Capacity

0-50 mm, 0.01

0-75 mm, 0.01

Vertical Dial Gauge /
Vertical Sensor Capacity

0-20 mm, 0.01

0-25 mm, 0.01

Max. Horizontal Displacemen

50 mm

 Max. Horizontal Load

5000 Kgf

5000 Kgf

Max. Vertical Stress

10 Kgf/Cm2

10 Kgf/Cm2

Uploading Speed Range
0.001-12
mm/min
0.001-12
mm/min

Mini. Shear Speed

0.001 mm/min

0.001 mm/min

Max. Shear Speed

12 mm/min

12 mm/min

Power Supply

220 V, 260 W

220 V, 260 W

Data Logger Unit3

Have Not

Has It

  1. Ability to change the capacity of load cell/force sensor according to buyer's requirements are available.
  2. Shear force capacity up to 10,000 kgf
  3. Data Logger Unit:
  • 16 bit.
  • 3 input channels.
  • Velocity of sampling: Up to 10 samples per second.
  • Reading and Recording software included.
  • Software of Analyzing results and Drawing necessary diagrams (Customized).

The other features of Direct Shear Apparatus:

Equipped with a keyboard and touch screen.
Automatic sensor-breakers for over limit displacement of the loading piston.
Capability of loading speed calibration by keyboard.
Capability of connecting to PC to troubleshooting the Set.

Special Capability of custom models:

Ability to display and print the process and test results without connecting to a computer.
Remote control possibility of devices.
Ability to change the vertical load from weights to pneumatic system.



Sampling and Shearbox Accessories

Description

Ordering Code

Weight approx
Kg
Outside Dimension
Cm
Inside Dimension
Cm
Material
15×15 Cm Shearbox
SMSO-7340
30
30×30×14.5
15×15×10
Stainless steel
20×20 Cm Shearbox
SMSO-7350
35
30×30×15.5
20×20×12.6
Stainless steel
30×30 Cm Shearbox
SMSO-7360
90
66×38×33
30×30×18
Stainless steel
Saturated Boxes of
Direct Shear
SMSO-7395
60
55×45×17
47×42×16
Stainless steel
Sampling Rammer
SMSO-7399
2.3
10×10×20

CK45
