Sample Extruders

Remove the soil from the sampling tubes should be done with minimal agitation, especially when small samples performed in order to lab tests. Sample ejectors are offered in two models.

  • Sample Extruder gets out of the sample from Shelby and U4, the manual hydraulic jack, can eject sample of U4 and Shelby from the sample tube. In addition, by changing its plate undisturbed samples can be prepared for triaxial tests, consolidate and cutting prepared.

  • Sample Extruder from Compaction and Marshal Moulds ( Multifunctional sample Extruder ) are used for an easy ejecting sample of Marshall, CBR, standard and modified Compaction Moulds. The Capacity of sample extruder is 5.5 ton and by using a manual hydraulic jack and 2 plates, is used for ejecting the sample with diameter 100 & 150mm ( 4 & 6 Inch ).

Standards:

ASTM D698, D1557, D1883, D1559; BS 1377-4, 1924-2, 598-107, EN 13286-2, 13286-47, 12697-30, AASHTO T134, T180, T193, T245

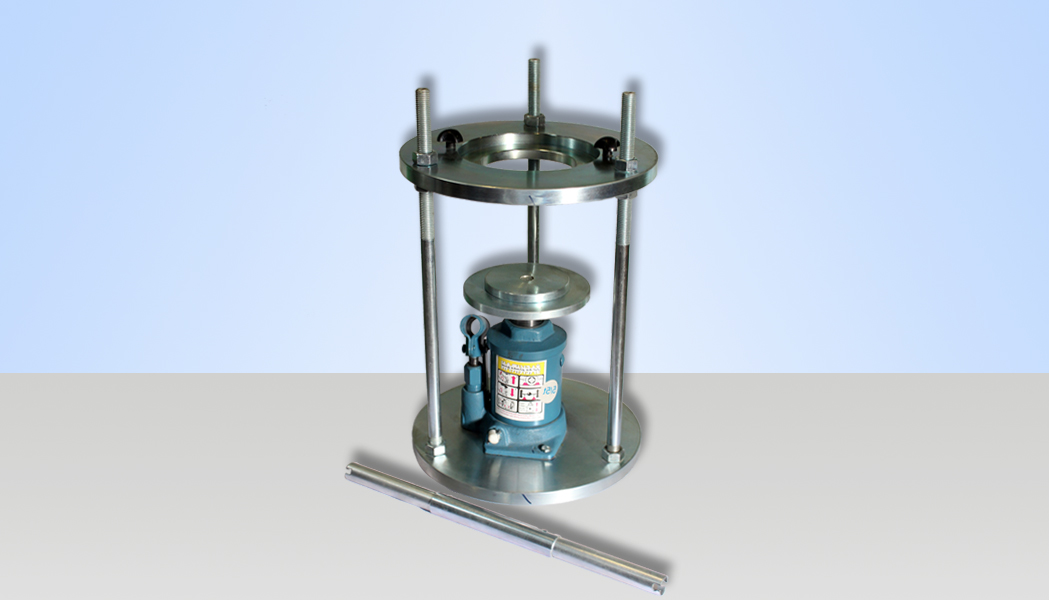

  • Sample_Extuder_11

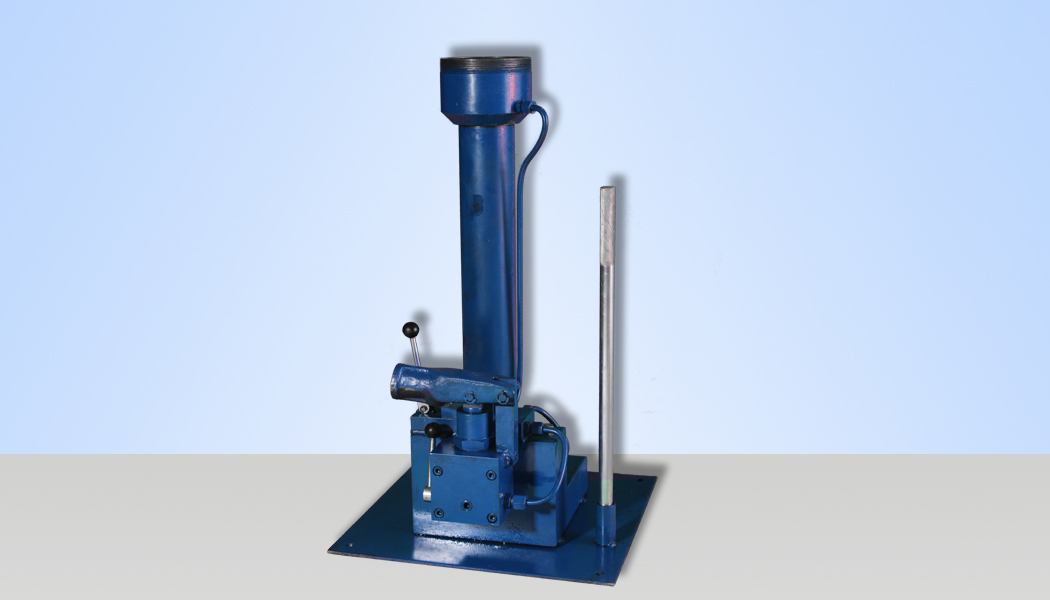

  • U4_Shelby_Extruder_11

Technical Specifications:

Order
Code

Description

Capacity
Ton
Handling Course
Cm
Approx Weight
Kg
Dimension
Cm

SMSO-1600

Sample Extruder for Shelby & U4

10

45

56.5

40×40×70

SMSO-1650

Sample Extruder from Marshal & Compaction Moulds
( Multifunctional Sample Extruder )

5.5

14

27.2

Ø30×50
