Sand Replacement
These equipment are used to determine the dry density of soil in situ. Specific gravity of the dry soil is the ratio of wet soil moisture in the place to the same moisture content of the soil plus one. The soil dry density can be determined density test (to obtain the compaction ratio) at the level of soil compaction achieved on the ground, divide the compaction of soil on the dry density and maximum dry density obtained in soil.
Standards:
|
BS 1377, 1924
|
Types of equipment for measuring the field density:

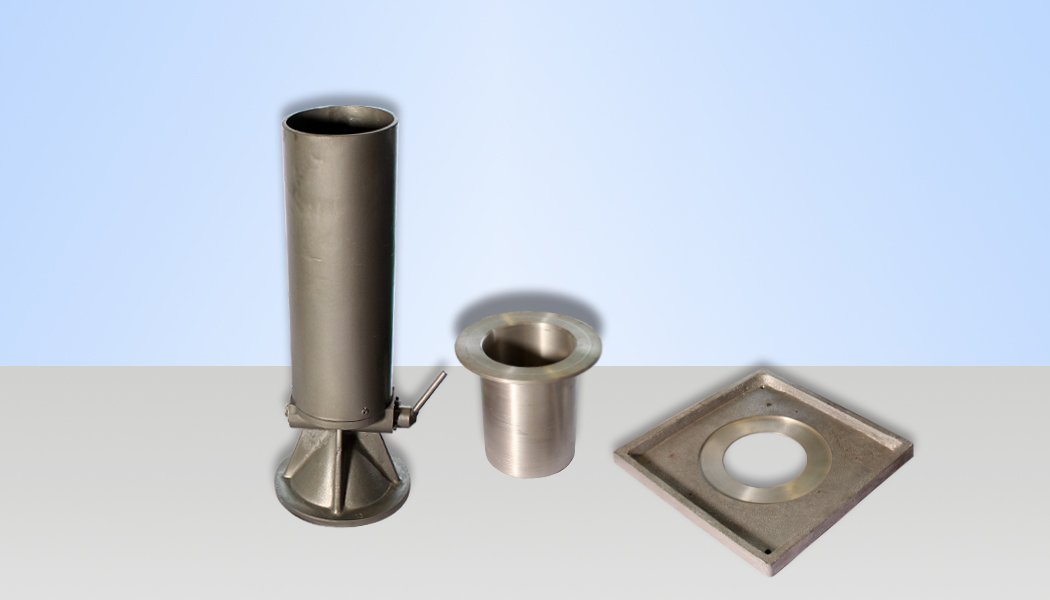

4" Sand Replacement Set |
SMSO-9210 |
Ordering Code
| Description |
Dimension
Cm
|
Weight
Kg
| Material |
---|---|---|---|---|
SMSO-9211
|
4" Calibrating Container
|
Ø16×16
|
0.955
|
Aluminum
|
SMSO-9212
|
4" Density Plate
|
25.5×25.5×2 | 1.300 |
Aluminum
|
SMSO-9213
|
4" Sand Pouring Cylinder
|
Ø16×43 | 2.820 |
Aluminum and High-pressure Pipe
|

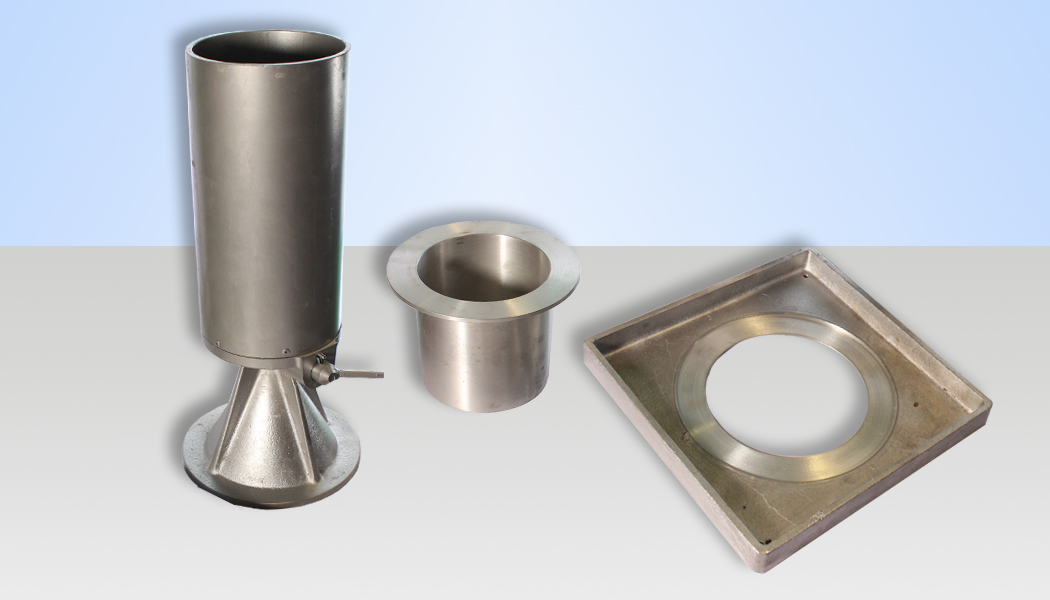

6" Sand Replacement Set |
SMSO-9220 |
Ordering Code
| Description |
Dimension
Cm
|
Weight
Kg | Material |
---|---|---|---|---|
SMSO-9221
|
6" Calibrating Container
|
Ø22×16 | 1.470 |
Aluminum
|
SMSO-9222
|
6" Density Plate
|
29.5×29.5×3 |
1.490
|
Aluminum
|
SMSO-9223
|
6" Sand Pouring Cylinder
|
Ø22.5×50 | 5.370 |
Aluminum and High-pressure Pipe
|

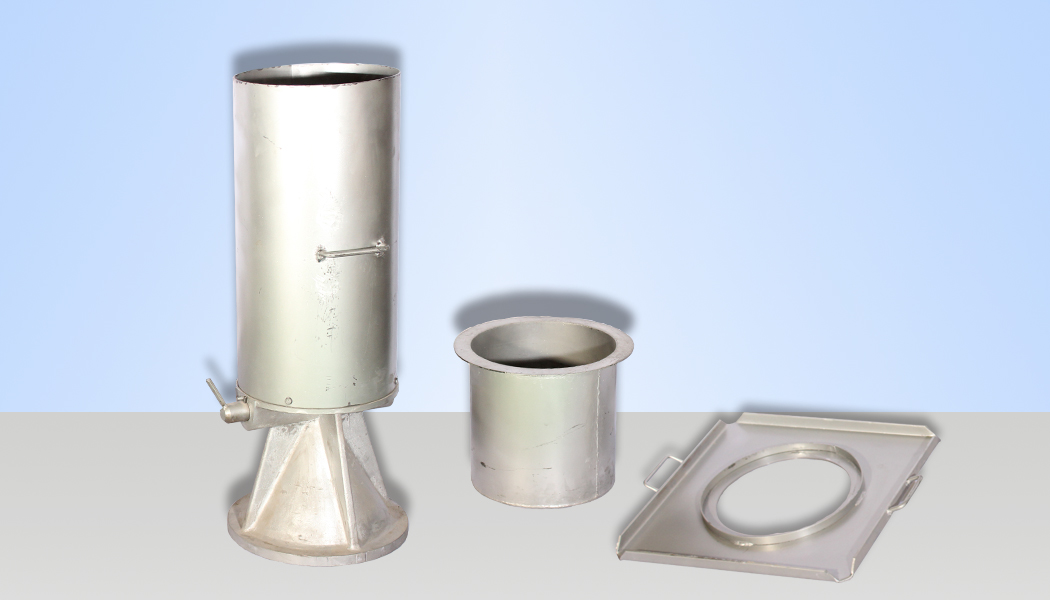

8" Sand Replacement Set |
SMSO-9230 |
Ordering Code
| Description |
Dimension
Cm
|
Weight
Kg | Material |
---|---|---|---|---|
SMSO-9231
|
8" Calibrating Container
|
Ø28×21 | 2.330 |
Steel Plate
|
SMSO-9232
|
8" Density Plate
|
40×40×3.5 | 4.755 |
Steel Plate
|
SMSO-9233
|
8" Sand Pouring Cylinder
|
Ø29×64.5 | 15.500 |
Aluminum and Steel Plate
|

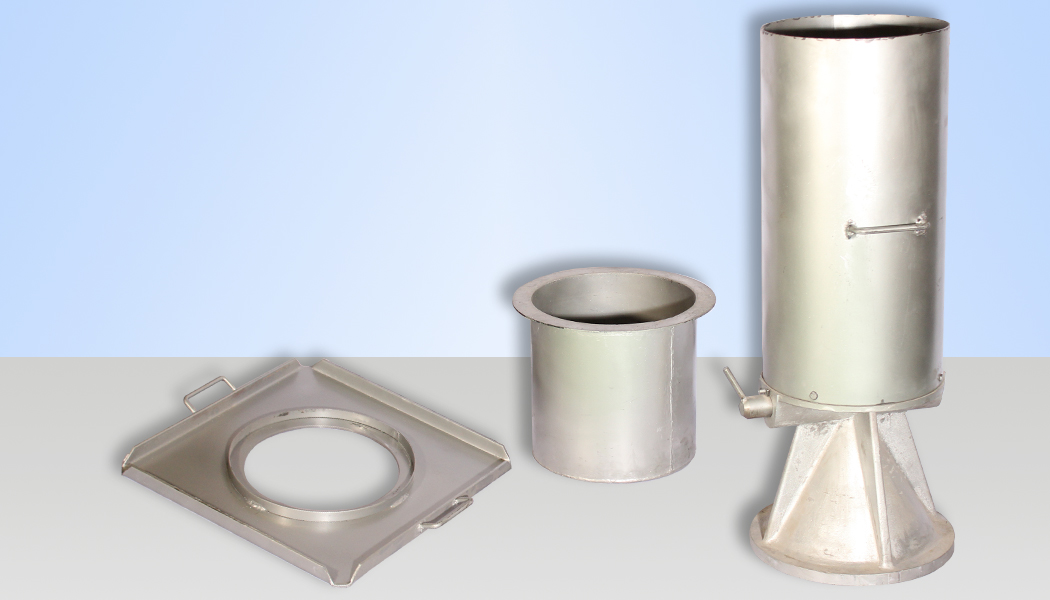

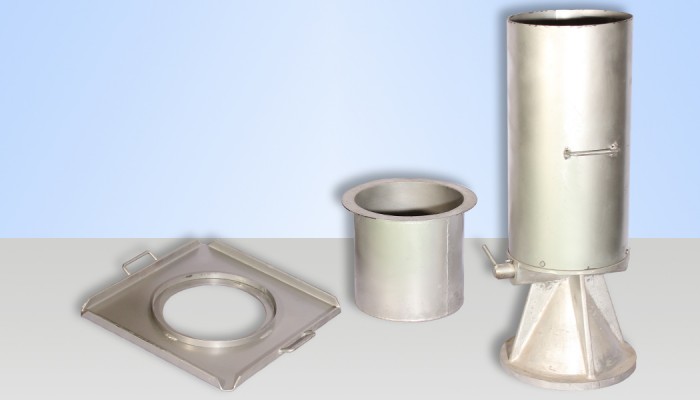

12" Sand Replacement Set |
SMSO-9250 |
Ordering Code
| Description |
Dimension
Cm
|
Weight
Kg | Material |
---|---|---|---|---|
SMSO-9251
|
12" Calibrating Container
|
Ø31×38 | 9.5 |
Steel Plate
|
SMSO-9252
|
12" Density Plate
|
58×63×4 | 15 |
Steel Plate
|
SMSO-9253
|
12" Sand Pouring Cylinder
|
Ø36.5×93 | 35 |
Aluminum and Steel Plate
|
