Hand Auger

To know more about of the geological conditions and geotechnical depths of land, are usually drilled speculation. By mechanical means drilled vertical borehole wells in soil or rock. Shallow boreholes sometimes by a simple device called auger (auger) which functions like drill heaters, are drilled.

  • Continuous spiral auger
The drilling device can be used for small to medium diameter holes and it is possible to obtain continuously disturbed samples.
The auger heads are suitable for boring in cohesive soil or sands and gravels.
Drilling method: spiral auger drilling is done by turning continuous string.
  • Hollow auger
The device is small to medium diameter holes for the sampling of the soil.
Drilling methods: drilling method is the same as before except that the hollow stem is wound into the ground to play the role of a separate tube.
  • Big diameter auger
The method for drilling holes with large diameter (up to 10 cm) for samples of soils disturbed and Adhesion layer need not be used to maintain the borehole.
Drilling method: by turning the soil auger has large diameter is cut and drill holes.

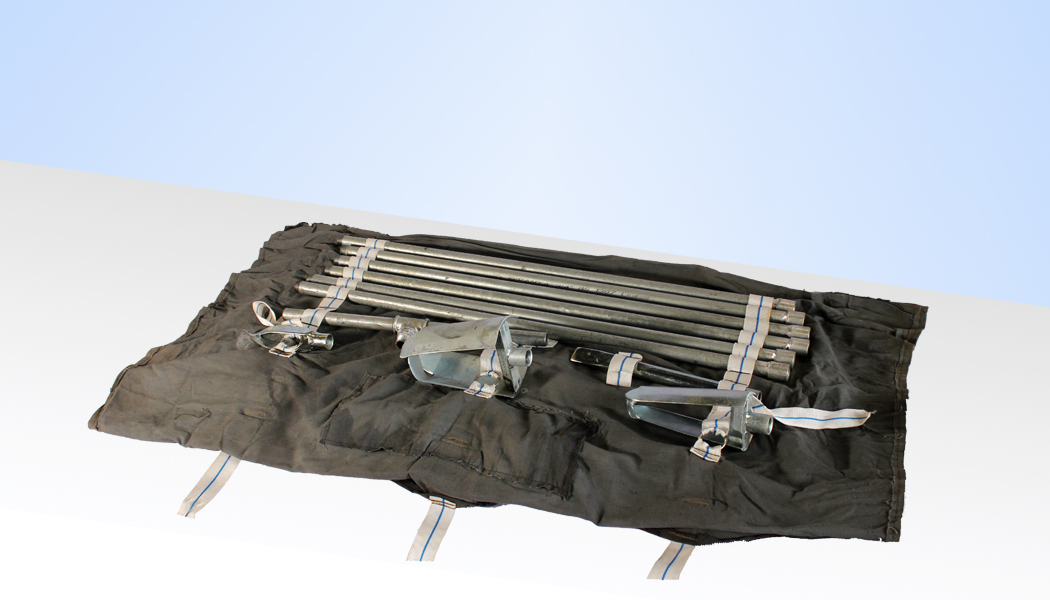

  • Hand_Auger_12

Ordering Information
SMSO-1200

Equipment are provided in set:

Order Code

Description

Qty

SMSO-1205
Auger Ø50mm
1
SMSO-1210
Auger Ø100mm
1
SMSO-1220
Auger Ø150mm
1
SMSO-1225
Extension rod, each 1 meter long
6
SMSO-1235
T-shaped handle
1
SMSO-1240
Chisel, for braking large stone
1
SMSO-1265
Pack of surface drilling equipment
1
