Sample Divider

Riffle box is used for rapid preparation of samples, division into two separate representative portions with the equal weight, to obtain numbers of the sample for more testing.

Sample divider box is constructed of iron and installed dividing channel made from iron sheet in the same width the large sample converted to equal size and width then transfer in opposite direction into side boxes. The slope of chutes divider should be enough steep to accelerate the flow divided sample.

Standards
BS 1377, 1924, 812, EN 932-1

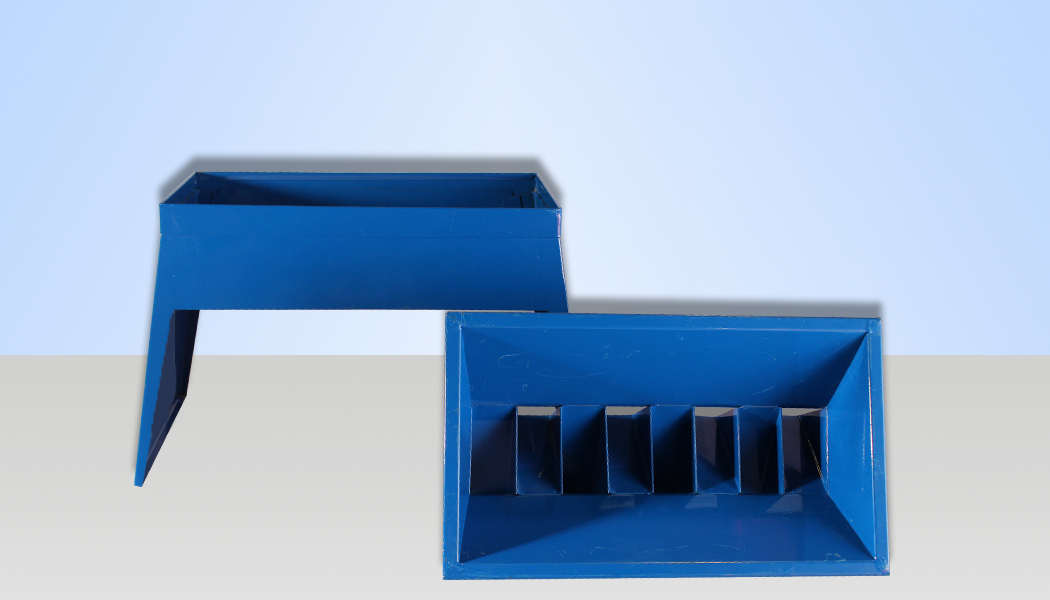

  • Sample_Divider_12

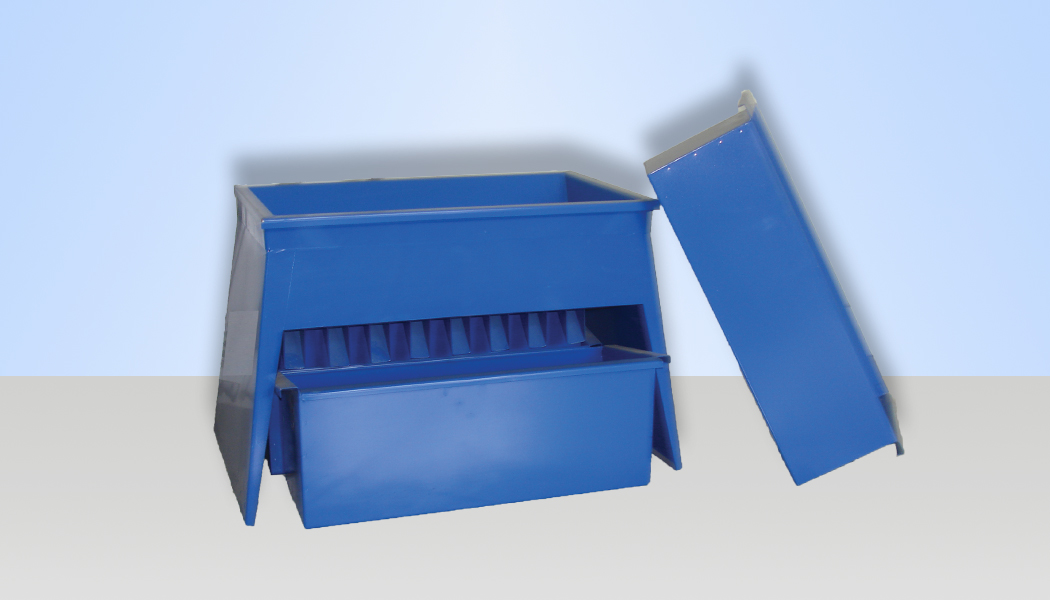

  • Sample_Divider_13

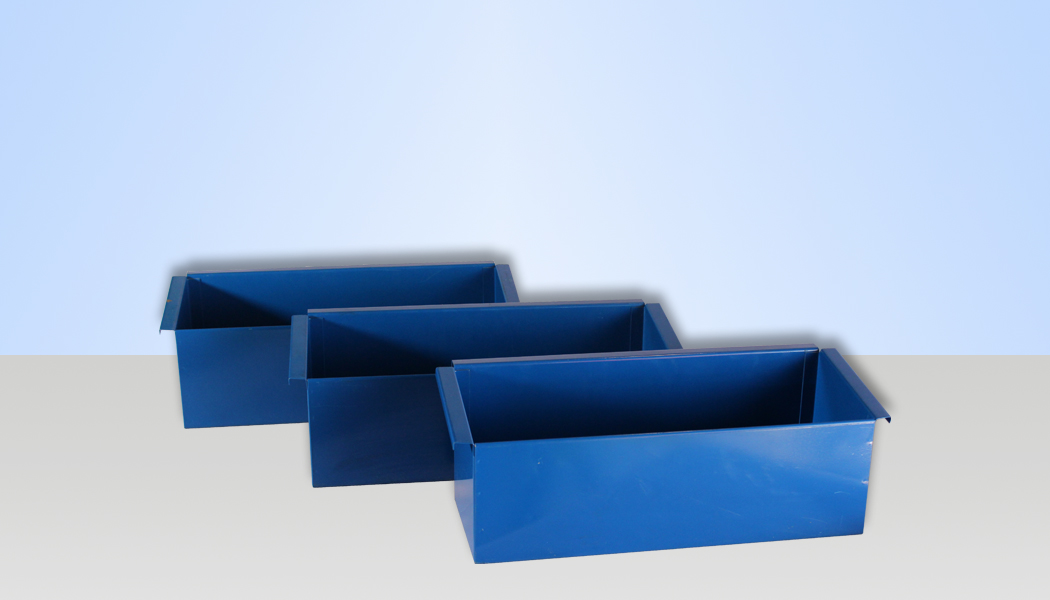

  • Sample_Divider_22

Technical Specifications:

Order Code
Slot
width
Number
of Slots
Material
Approx weight
Kg
Dimension
L×W×H
Cm
Description
SMSO-1525 25 mm 16 Iron sheet 13 50×45×36
  • Electrostatic painted
  • 3 Separate box for each set
  • Approximate capacity in each box 11 Liter
SMSO-1550 50 mm 8 Iron sheet 11 50×45×36
  • Electrostatic painted
  • 3 Separate box for each set
  • Approximate capacity in each box 11 Liter
