Dynamic Triaxial Test

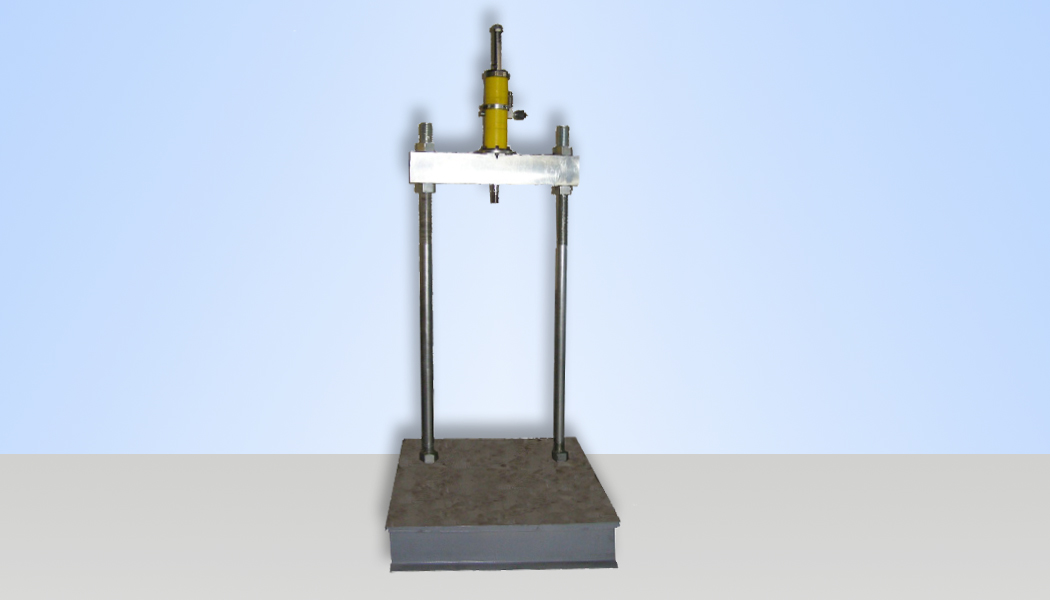

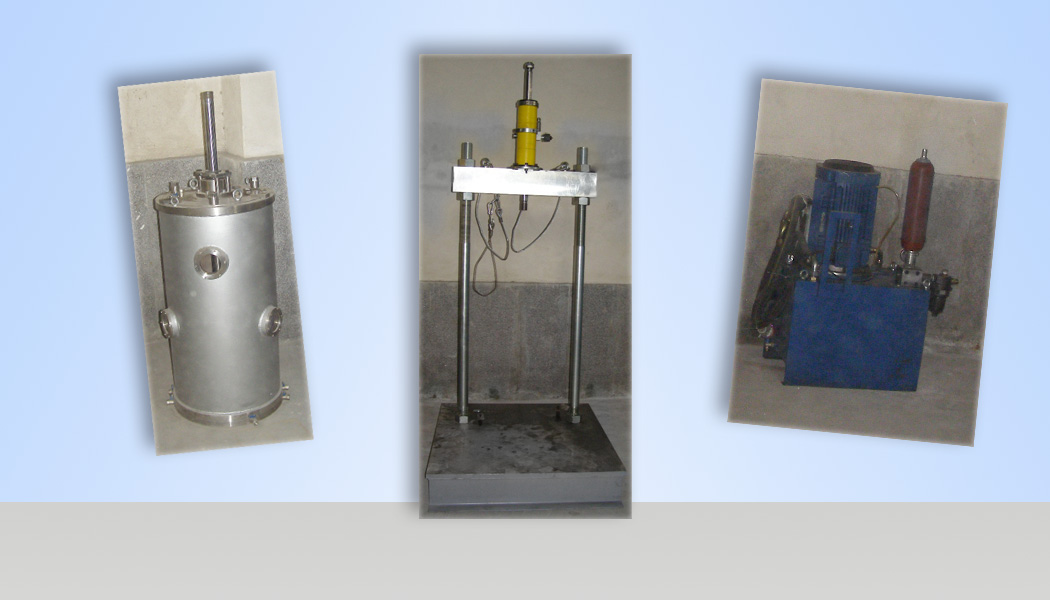

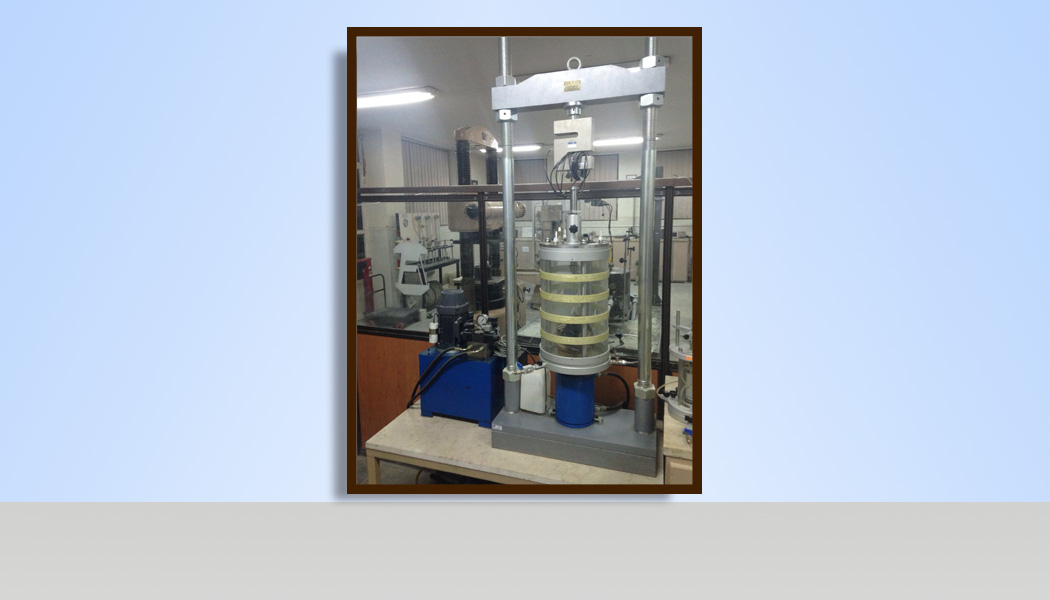

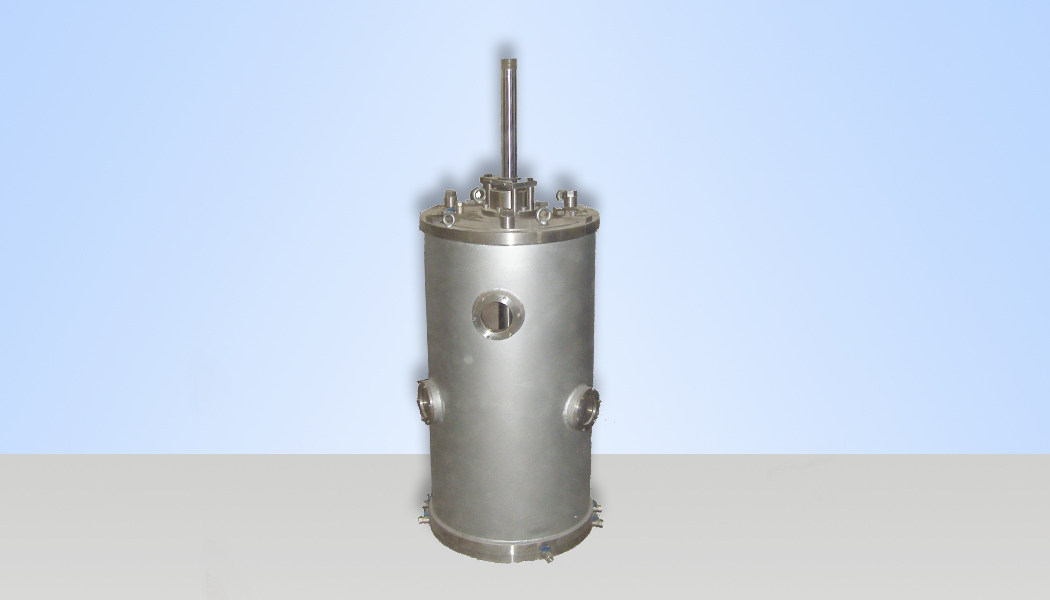

Dynamic ( cyclic ) triaxial test machine made by the basis on the experts of this company. This machine have been recognized with the ability to perform static and dynamic tests of soil materials up to a diameter of 300 mm. Specification of the machine organized with the different parts such as triaxial chamber, vertical loading frame, hydraulic and pneumatic pumps, the digital control unit has been established with the devices is fully electronic and the data receiving system also computerized.
| Standards: | ASTM D2850, D3999, D4767, D5311, D7181 |
The details of different models:
| Model |
DTR-PN-6 |
DTR-PN-6-L |
DTR-PN-6-M-50 |
DTR-HY-20 |
DTR-HY-300 |
|---|---|---|---|---|---|
|
Ordering Code |
SMSO-6401 |
SMSO-6402 |
SMSO-6403 |
SMSO-6404 |
SMSO-6405 |
|
Loading System |
Pneumatic |
Mechanic / Pneumatic |
Hydraulic |
||
|
Capacity
Kgf
|
600 |
600/5000 |
2000 |
10000 |
|
|
Proper Sample Dia.
mm
|
38 to 70 |
38 to 70 (Pneumatic)
38 to 150 (Mechanic)
|
50 to 100 |
100 to 500 |
|
|
Including Cell Size
mm
|
50 و 70 |
300 |
|||
|
Max. Vertical Displacement
mm
|
50 |
100 |
200 |
||
|
Max. Frequency
Hz
|
5 |
20 |
15 |
||
|
Mini. Loading Speed
mm/Min
|
0.05 |
0.001 |
0.05 |
0.1 |
|
|
Wave Form |
The sine / Saw Tooth / Triangle / Square / Desired |
||||
|
Monotonic test |
UU-CU-CD-
Stress Path
|
UU-CU-CD |
UU-CU-CD-Stress Path |
||
|
Dynamic test |
Liquefaction
Deformation
|
Liquefaction |
Liquefaction
Deformation
|
||
|
Multilateral Pressure
Regulation
|
Manual & Automatic |
Manual |
Manual & automatic | ||
|
Max. Multilateral Pressure
KPa
|
1000 |
||||
|
Gap Sensor |
Has It |
Have Not |
Has It | ||
| Load Sensor Type | Submerged in Water |
Out of Cell |
Submerged in Water |
Out of Cell |
|
|
Loadcell Capacity
Kgf
|
500 |
1000 |
10000 |
||
|
Volume Change Capacity |
80 cc |
4000 cc |
|||
|
Data Logger |
8-channel 16-bit input / 2-chnnel 16-bit output / repetition speed of loop control 1 KHz / Control based on real-time system |
||||
|
Software |
Recording, Controlling, Analysis and Drawing conclusions |
||||
Custom functionality on the machine (optional):
- Increase the number of channels up to 16 channels.
- Testing in unsaturated conditions.
- Installation of bending elements (Bender Element) to measure shear wave.
- Velocity in the sample connect the specific and intracellular sensors.
